| design code | b : valve plate | ||
| paint | 0a : primer per spec 209-13a | ||
| displacement options | b : 12.3 cm3/r [.75 in3/r] destroked from 20.3 cm3/r [1.24 in3/r] | ||
| drain port size & location | a : .5625-18 unf-2b sae o-ring ports - upper rear (backplate) | ||
| output shaft | aa : 13 tooth 16/32 spline with snap ring groove, minimum full spline 22.1 [.87], shaft extension 41.1 [1.62] | ||
| motors | aavaaba0b000a0b |
| identification | 0 : standard | ||
| special features | 00 : none | ||
| auxiliary mounting features (rear) | 0 : none | ||
| main port size & location | b : 1.0625-12 un-2b sae o-ring ports - rear | ||

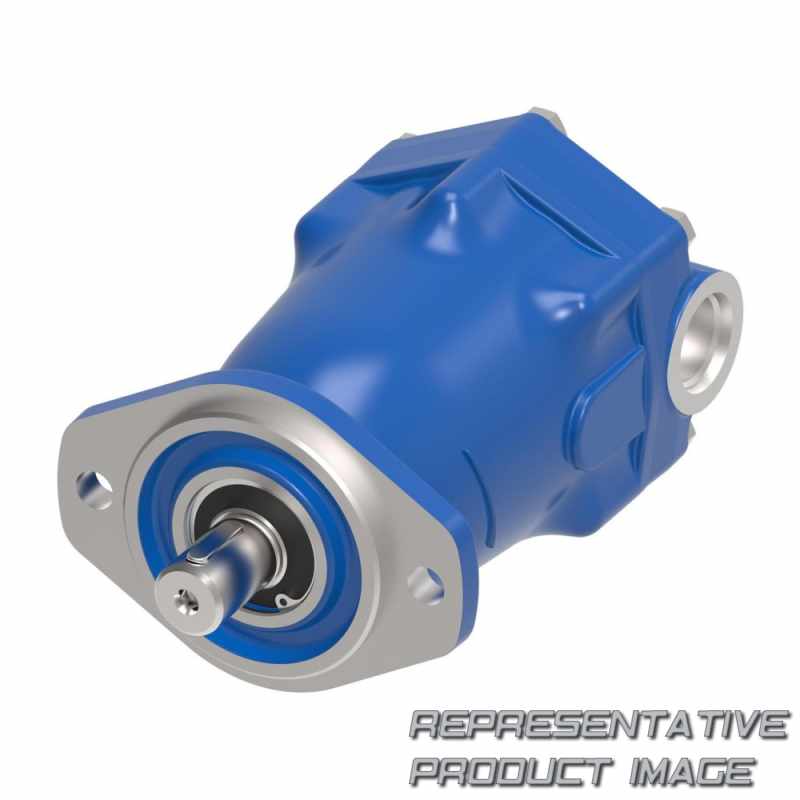

| code title | aav : 20.3 cm3/r [1.24in3/r] fixed displacement piston motor |
