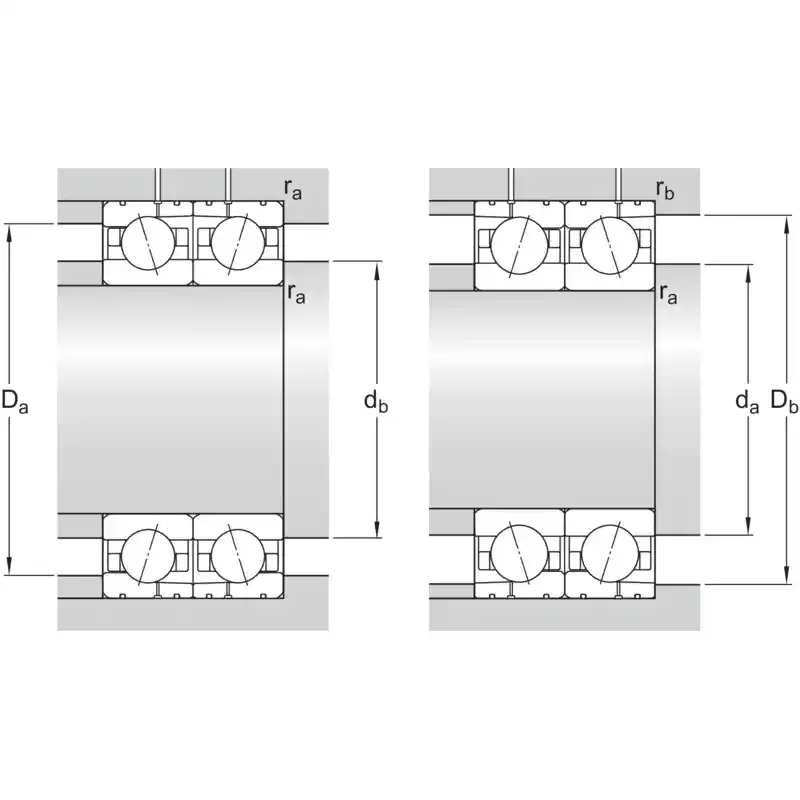

| Distance from side face to pressure point | a | 19,40 | mm |
| Chamfer dimension (large side face) | r1,2 | min.1 | |
| Distance from outer ring side face to lubrication groove / lubrication hole | C1 | 8,60 | mm |
| Shoulder diameter of outer ring (large side face) | D1 | 90,80 | mm |
| Shoulder diameter of inner ring (large side face) | d1 | 79,20 | mm |
| Außen-Ø | d2 | 100 | mm |
| Chamfer dimension (small side face) | r3,4 | min.0.3 | |
| Distance from outer ring side face to O-ring groove | C2 | 2,80 | mm |
| Width of lubrication groove | b | 2 | mm |
| Shoulder diameter of inner ring (small side face) | d2 | 79,20 | mm |
| Breite | B | 16 | mm |
| Bore diameter | d | 70 | mm |
