| pumps | vmq135s100b00100aacanr 00a032 | ||
| frame size | 35 : 90-140 cm3/r [5.49-8.54 in3/r] | ||
| Schluckvolumen | 100 : 100.0 cm3/r [6.10 in3/r] 35 frame size | ||
| adapter mount/orient. (cover end view) | 0 : none (standard pump) | ||
| output shaft coupling | 00 : none (standard pump) | ||
| outlet port type | a : 4-bolt flange per sae j518 with english threads | ||
| Wellendichtung | a : single primary | ||
| pump rotation (shaft end view) | r : right hand (clockwise) | ||
| paint | a : painted blue | ||
| design code | 32 : thirty-second |

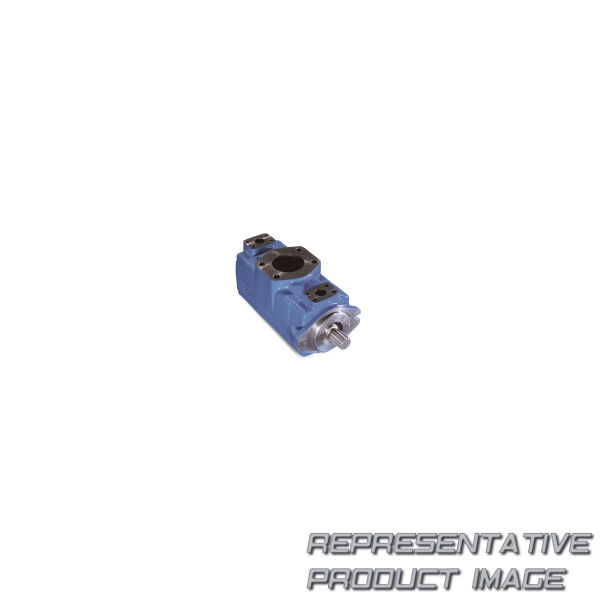

| Produkt | vmq1 : vmq single series vane pump | ||
| pump type | s : standard | ||
| front mounting flange type | b : sae j744 127-2 (sae c) 2 bolt 127.00 [5.000] dia. x 12.4 [.49] pilot 17.6 [.69] dia. slots on 181.0 [7.13] dia. bolt circle | ||
| input shaft type | 01 : keyed shaft per sae j744 for 25, 35, or 45 frame | ||
| inlet port type | a : 4-bolt flange per sae j518 with english threads | ||
| outlet port pos. (cover end view) | c : outlet port in-line with inlet port | ||
| Seal Type | n : buna n | ||
| special features | 00 : none | ||
| customer identification | 0 : none |
