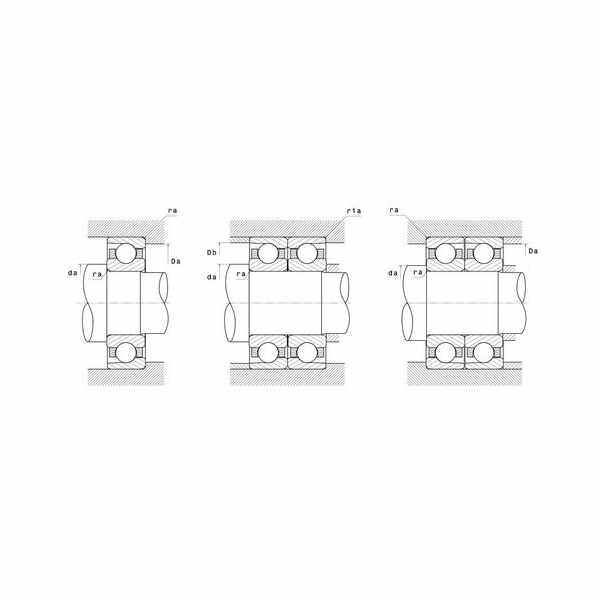

| ra max - Max shaft & housing fillet radius | 1 mm | ||
| Db max - Max OR shoulder diameter | 120,5 mm | ||
| da min - Min shoulder diameter IR | 87 mm | ||
| FTF - Characteristic cage frequency | 0,443 Hz | ||
| BPFO - Characteristic outer ring frequency | 8,86 Hz | ||
| Tmin - Min operating temperature | -20 °C | ||
| Nlim - Oil lubrication limit speed | 7300 tr/min | ||
| C0 - Static load | 50,5 kN | ||
| Radial clearance class | CN | ||
| rs - Min fillet radius | 1,1 mm | ||
| a - Charge load application point | 40,5 mm |
| r1a - Max fillet radius | 0,6 mm | ||
| Da max - Max shoulder diameter OR | 118 mm | ||
| BSF - Characteristic rolling element frequency | 7,5 Hz | ||
| BPFI - Characteristic inner ring frequency | 11,14 Hz | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Grease lubrication limit speed | 5500 tr/min | ||
| Cu - Fatigue limit load | 3,5 kN | ||
| C - Dynamic load | 59 kN | ||
| r1s - Min fillet radius | 0,6 mm | ||
| α - Contact angle | 30 ° | ||
| Brand | NTN |
