692-8 Parker Hannifin

PARKER 692-8

Name: 692-8 PARKER
Brand: PARKER
SKU: 573980-de-eur
Price: 42.49 EUR
Availability: InStock

42,49 € /m ~~68,57 €~~ /m -38%

50 m mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

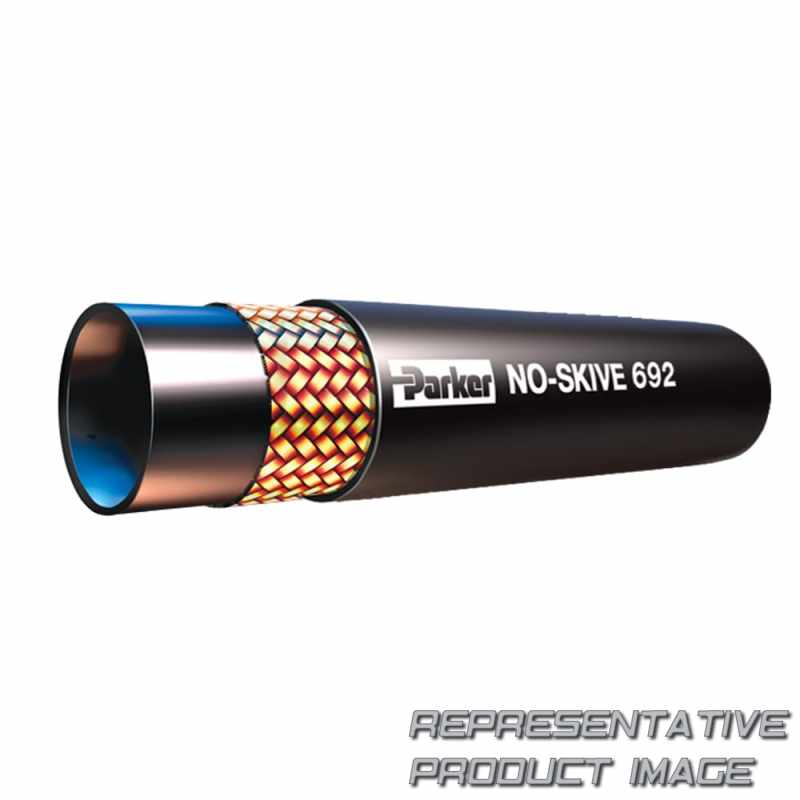

Parker No-Skive Compact hydraulic hose 692 has been designed for general small bending raddi applications with a working pressure up to 21,0 MPa. The hose range is compatible with No-Skive fittings in steel and stainless steel in series 46 and 48.

max. Druck	3045, 21

Gewicht	520g

Technical data

hose type		single line
hose i.d. (size)		-8
hose outside diameter		0.803 inch, 20.4 mm
cover color		black
Produktfamilie		constant working pressure hose, hydraulic hose
materials of construction		rubber
product style		no-skive compact
media		hydraulic fluids, air, petroleum & water-glycol based fluids, lubricating oils, fuels (check fuel type with our catalogue chart)., coolants i.e. glycol, lubricants, industrial air, mineral hydraulic oil, water
division		polymer hose division europe
maximum operating pressure		3045, 21
hose inside diameter		1/2 inch, 12.7 mm
Maximale Betriebstemperatur		100 °c (water: 85 , air: 70), 212 °f (water: 185, air: 158)
specifications met		parker specifications
Gewicht		0.35 lb/ft, 0.52 kg/m

hose cover material		synthetic rubber
hose reinforcement material		1 or 2 high tensile steel wire braids
industry		industrial manufacturing equipment
hose inner tube material		nitrile nbr, one or two high-tensile steel wire braids
technology		fluid & gas handling
design factor		4:1
minimum bend radius		2 inch, 50 mm
Brand		parker
Anwendung		general small bending radii hydraulic applications, ideal for the sheave or reel applications
Burst pressure		84 mpa, 12180 psi
compatible fitting		46 series
Minimale Betriebstemperatur		-40 °c
cover material		synthetic rubber
