| connection 2 size | tube stem | ||
| connection 1 size | push-to-connect | ||

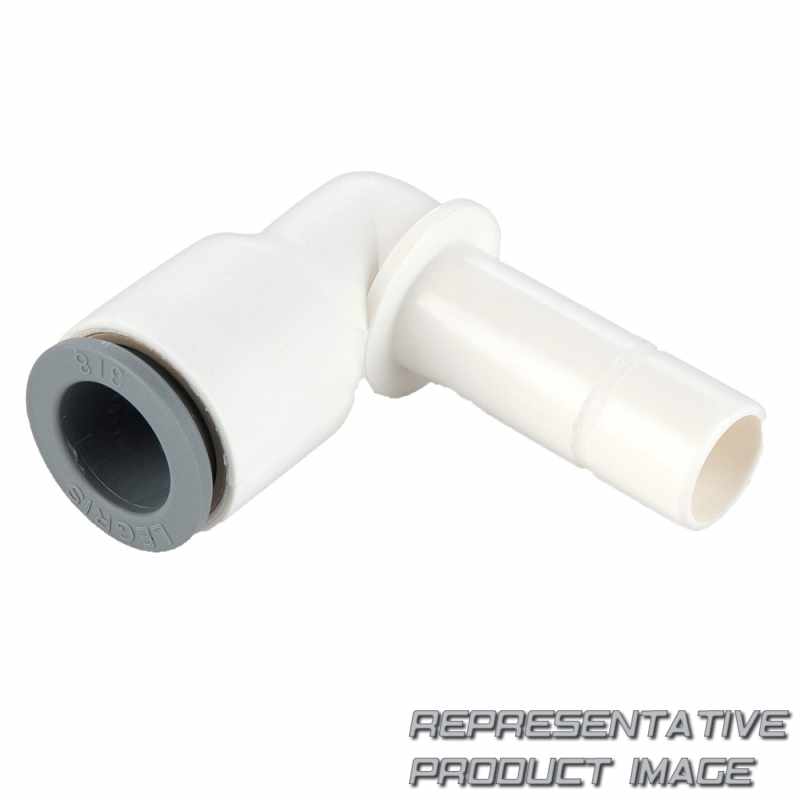

| shape | plug-in 90˚ elbow | ||
| Anschlussart | bspt | ||
| seal material | epdm | ||
| specifications met | rohs, reach, reg: 1935/2004, fda, nsf 51 , nsf/ansi 61 , dm 174, ktw, wras, acs | ||
| media | water, beverages, co2 | ||
| maximum operating pressure | 230 psi, 16 bar | ||
| Minimale Betriebstemperatur | 35 °f, 2 °c |
| connection 2 tube stem outside diameter | na, 4 mm | ||
| connection 1 tube outside diameter | na, 4 mm | ||
| product style | tube to tube stem | ||
| gripping ring material | stainless steel | ||
| body material | bio-based polymer | ||
| Anwendung | water purification, water/beverage dispensing, food process, medical | ||
| tube material | polyethylene | ||
| Maximale Betriebstemperatur | 265 °f, 93 °c |
