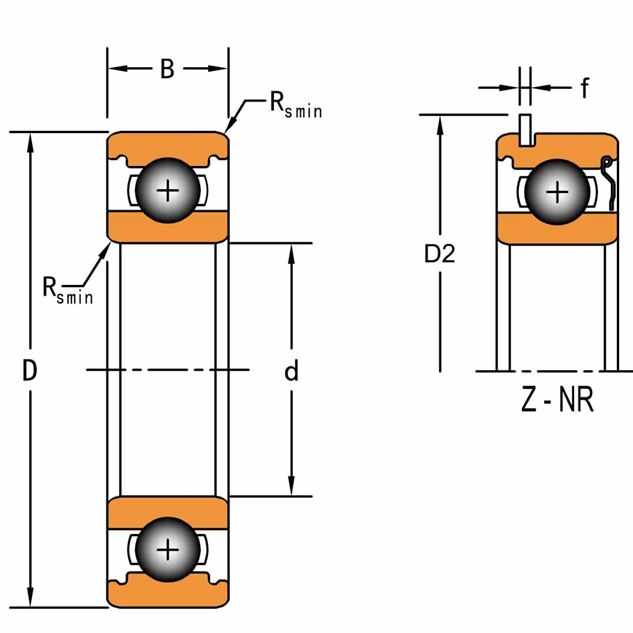

| Snap Ring Width f max | 1,70 | mm | |
| Radius Rs min | 1,50 | mm | |
| Outside Diameter D | 80 | mm |
| Snap Ring Diameter D2 max | 86,60 | mm | |
| Outside Ring Width B | 21 | mm |
| Gewicht | 0,45 | Kg | |
| Features | One Shield With Snap Ring | ||
| Clearance | C0 (Normal) |
| Bearing Type | Standard DGBB | ||
| Bore Size d | 35 | mm |
