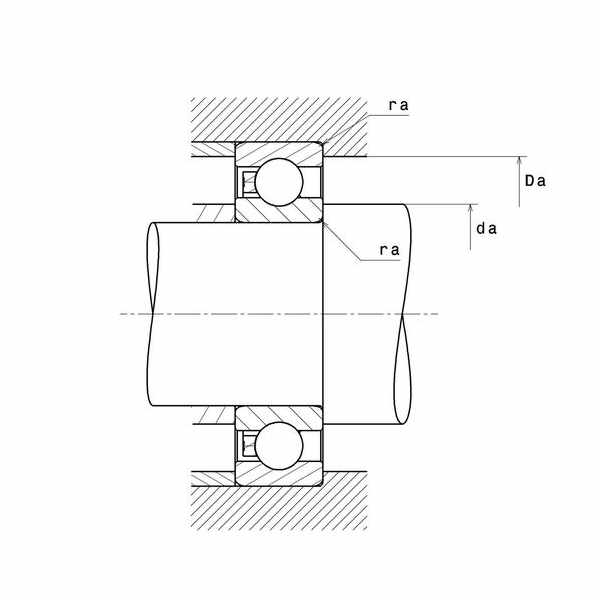

| ra max - Max shaft & housing fillet radius | 1 mm | ||
| da min - Min shoulder diameter IR | 30 mm | ||
| FTF - Characteristic cage frequency | 0,398 Hz | ||
| BPFO - Characteristic outer ring frequency | 3,585 Hz | ||
| Tmin - Min operating temperature | -20 °C | ||
| Nref - Reference thermal speed | 14000 tr/min | ||
| Cu - Fatigue limit load | 0,36 kN | ||
| C - Dynamic load | 14,8 kN | ||

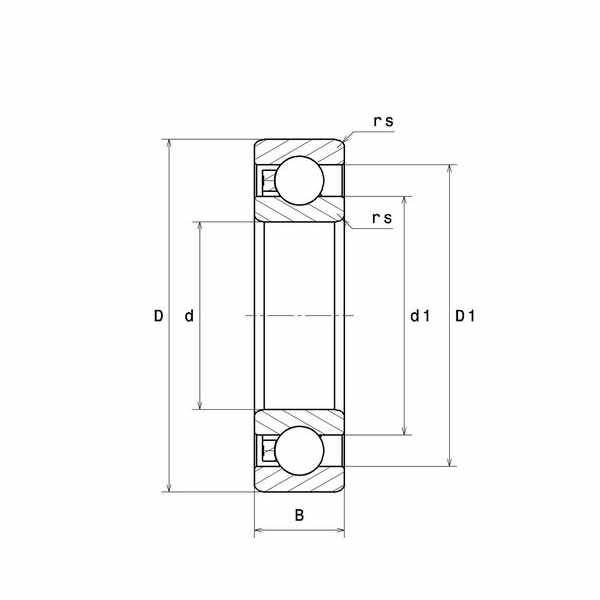

| rs - Min fillet radius | 1 mm | ||
| Brand | SNR |
| Da max - Max shoulder diameter OR | 47 mm | ||
| BSF - Characteristic rolling element frequency | 4,715 Hz | ||
| BPFI - Characteristic inner ring frequency | 5,415 Hz | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Mechanical Limit Speed | 22000 tr/min | ||
| f0 - Coefficient | 13,90 | ||
| C0 - Static load | 7,9 kN | ||
| Radial clearance class | C4 | ||
| D1 - Inner diameter outer ring | 49,2 mm |
