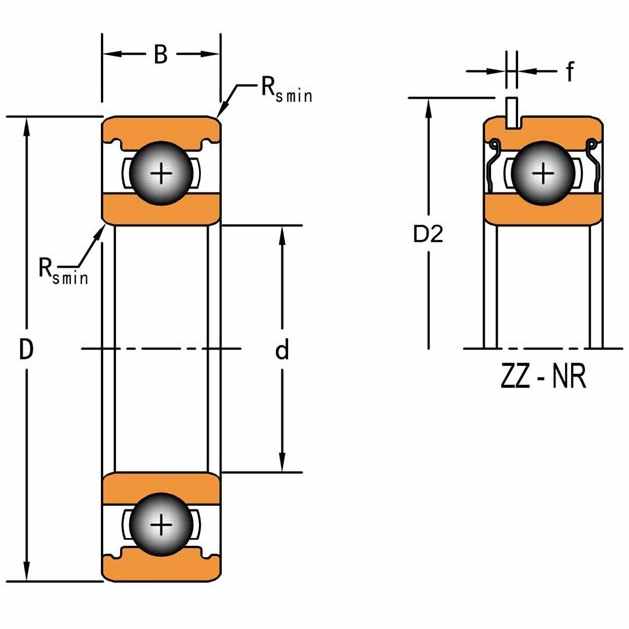

| Snap Ring Width f max | 1,12 | mm | |
| Radius Rs min | 0,60 | mm | |
| Outside Diameter D | 35 | mm |
| Snap Ring Diameter D2 max | 39,70 | mm | |
| Outside Ring Width B | 11 | mm |
| Gewicht | 0,05 | Kg | |

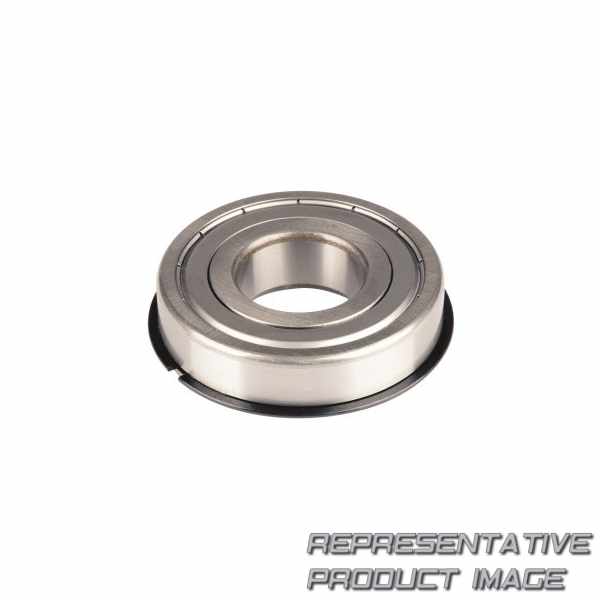

| Features | Shields With Snap Ring | ||
| Clearance | C0 (Normal) |
| Bearing Type | Standard DGBB | ||
| Bore Size d | 15 | mm |
