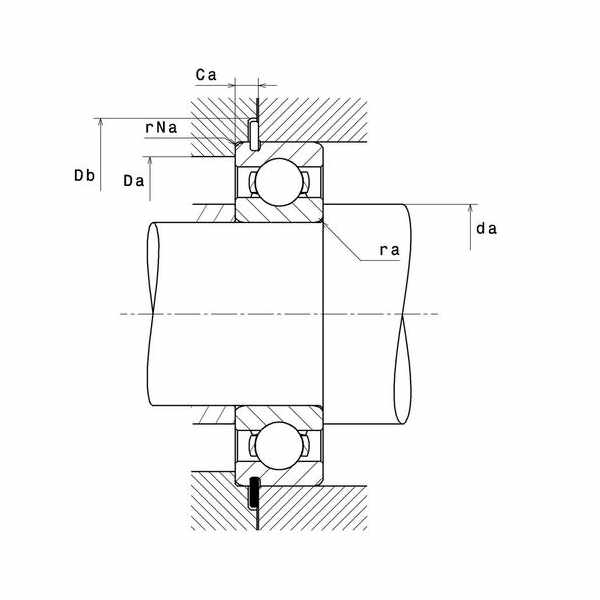

| Db min - Min stop ring position diameter | 71,5 mm | ||
| ra max - Max shaft & housing fillet radius | 1 mm | ||
| da min - Min shoulder diameter IR | 37 mm | ||
| FTF - Characteristic cage frequency | 0,394 Hz | ||
| BPFO - Characteristic outer ring frequency | 3,149 Hz | ||
| Tmin - Min operating temperature | -40 °C | ||
| Nlim - Oil lubrication limit speed | 12000 tr/min | ||
| Cu - Fatigue limit load | 0,84 kN | ||
| C - Dynamic load | 23 kN | ||
| Snap ring reference | R65 | ||

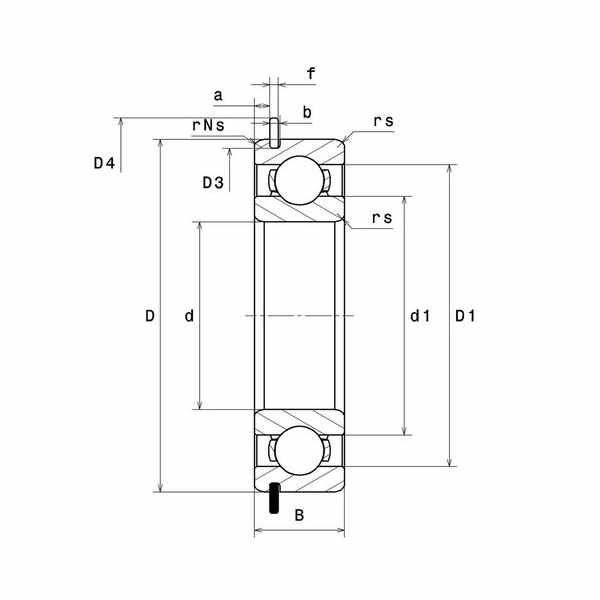

| D4 max - Max outer diameter of assembled stop ring | 70,7 mm | ||
| b max - Max groove width | 2,2 mm | ||
| D3 - Max bottom groove diameter | 62,6 mm | ||
| rs - Min fillet radius | 1 mm | ||
| Ca min - Mini segment position | 4,77 mm | ||
| a min - Min position Groove | 3,07 mm |
| rNa max - Max fillet radius on segment side | 0,5 mm | ||
| Da max - Max shoulder diameter OR | 60 mm | ||
| BSF - Characteristic rolling element frequency | 4,487 Hz | ||
| BPFI - Characteristic inner ring frequency | 4,851 Hz | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Grease lubrication limit speed | 11000 tr/min | ||
| f0 - Coefficient | 13,60 | ||
| C0 - Static load | 11,6 kN | ||
| Radial clearance class | CN | ||
| f - Stop ring thickness | 1,7 mm | ||
| r0 max - Max bottom groove radius | 0,6 mm | ||
| b min - Min groove width | 1,9 mm | ||
| rNs - Min fillet radius | 0,5 mm | ||
| Ca max - Max segment position | 4,98 mm | ||
| a max - Max position groove | 3,28 mm | ||
| Brand | NTN |
