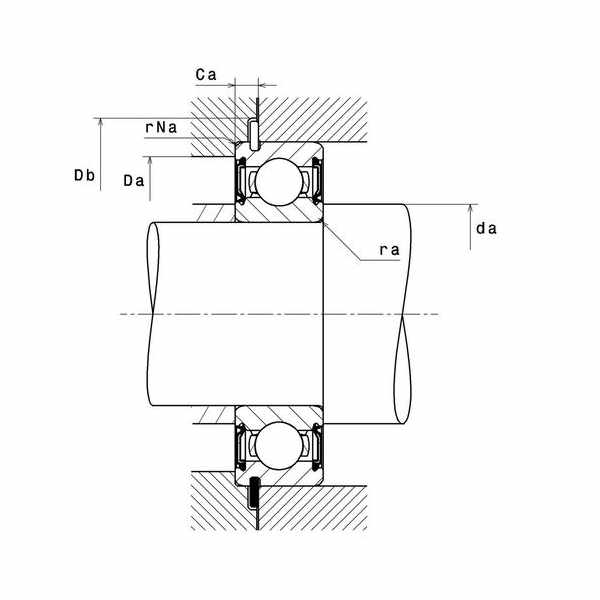

| Db min - Min stop ring position diameter | 118 mm | ||
| ra max - Max shaft & housing fillet radius | 1 mm | ||
| da max - Max shoulder diameter IR | 80,5 mm | ||
| BSF - Characteristic rolling element frequency | 7,427 Hz | ||
| BPFI - Characteristic inner ring frequency | 7,926 Hz | ||
| Tmax - Max operating temperature | 110 °C | ||
| Nlim - Grease lubrication limit speed | 3600 tr/min | ||
| Cu - Fatigue limit load | 2,3 kN | ||
| C - Dynamic load | 42 kN | ||
| Snap ring reference | R110 | ||

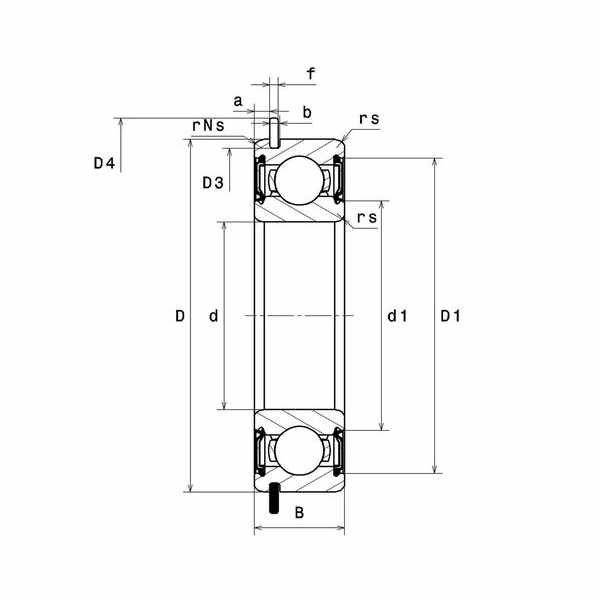

| D4 max - Max outer diameter of assembled stop ring | 116,6 mm | ||
| b max - Max groove width | 3 mm | ||
| D3 - Max bottom groove diameter | 106,81 mm | ||
| rs - Min fillet radius | 1,1 mm | ||
| Ca min - Mini segment position | 5,03 mm | ||
| a min - Min position Groove | 2,67 mm |
| rNa max - Max fillet radius on segment side | 0,5 mm | ||
| Da max - Max shoulder diameter OR | 103,5 mm | ||
| da min - Min shoulder diameter IR | 76,5 mm | ||
| FTF - Characteristic cage frequency | 0,434 Hz | ||
| BPFO - Characteristic outer ring frequency | 6,074 Hz | ||
| Tmin - Min operating temperature | -25 °C | ||
| f0 - Coefficient | 15,60 | ||
| C0 - Static load | 31 kN | ||
| Radial clearance class | CN | ||
| f - Stop ring thickness | 2,46 mm | ||
| r0 max - Max bottom groove radius | 0,6 mm | ||
| b min - Min groove width | 2,7 mm | ||
| rNs - Min fillet radius | 0,5 mm | ||
| Ca max - Max segment position | 5,33 mm | ||
| a max - Max position groove | 2,87 mm | ||
| Brand | NTN |
