| frame size | iso 2 | ||
| power consumption dc | 2 w | ||
| compressed air connection, exhaust | base plate iso 5599-1 | ||
| Anschlussart | plate connection | ||
| valve type | spool valve | ||
| Standards | iso 5599-1 | ||
| Dichtprinzip | soft seal | ||
| electrical connection size | en 175301-803, form a | ||
| Handhilfsbetätigung | with detent, without detent | ||
| dc operating voltage | 24 v | ||
| working pressure min. | 1.5 bar | ||

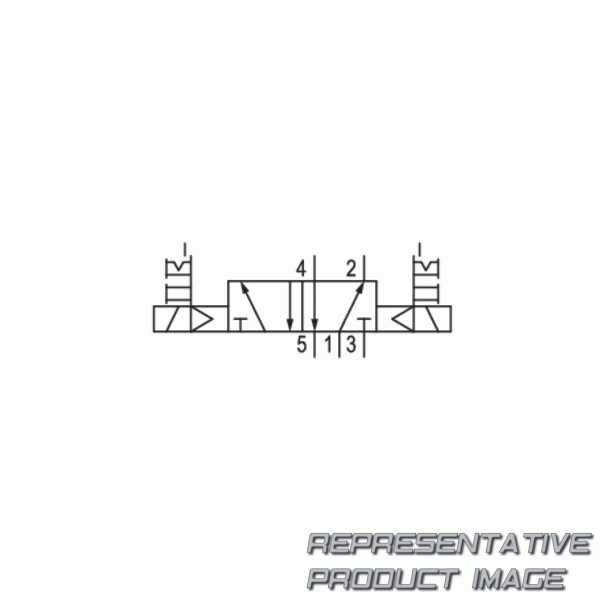

| switching principle | 5/2 | ||
| activation | electrically |
| flow conductance c | 10.8 l/(s*bar) | ||
| compressed air connection pilot exhaust | m5 | ||
| compressed air connection input | base plate iso 5599-1 | ||
| blocking principle | single base plate principle | ||
| pilot valve width | 30x22 mm cnomo | ||
| pilot | internal | ||
| actuating control | double solenoid | ||
| electrical connection type | plug | ||
| voltage tolerance dc | -10% / +10% | ||
| working pressure max | 10 bar | ||
| compressed air connection output | base plate iso 5599-1 | ||
| nominal flow qn | 2700 l/min |
