| control pressure max. | 10 bar | ||
| frame size | iso 1 | ||
| flow conductance c | 4.3 l/(s*bar) | ||
| compressed air connection, exhaust | base plate iso 5599-1 | ||
| Anschlussart | plate connection | ||
| valve type | spool valve | ||
| Standards | iso 5599-1 | ||
| Dichtprinzip | soft seal | ||
| electrical connection type | plug | ||
| working pressure max | 10 bar | ||
| compressed air connection output | base plate iso 5599-1 | ||

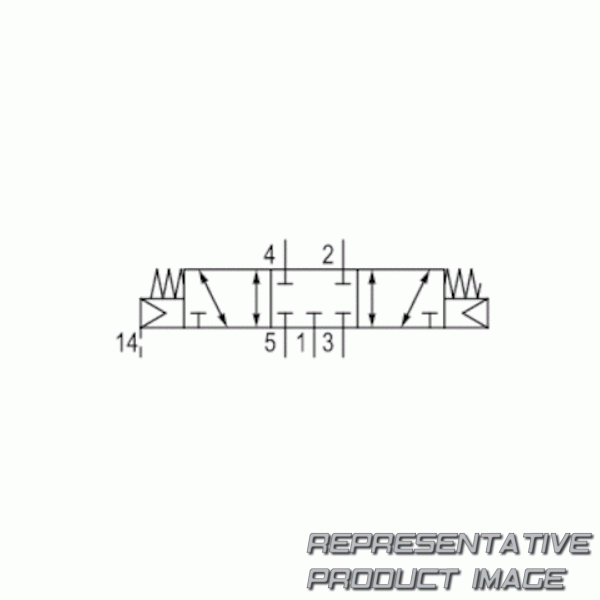

| switching principle | 5/3 | ||
| activation | electrically |
| control pressure min. | 3 bar | ||
| basic valve with electrical connector | basic valve without coil | ||
| compressed air connection pilot exhaust | m5 | ||
| compressed air connection input | base plate iso 5599-1 | ||
| blocking principle | single base plate principle | ||
| pilot valve width | 22 mm | ||
| pilot | external | ||
| electrical connection size | form b, industry | ||
| Handhilfsbetätigung | with detent | ||
| working pressure min. | -0.95 bar | ||
| Ausführung | closed center | ||
| nominal flow qn | 1100 l/min |
