AVENTICS 5801720000

Name: 5801720000 AVENTICS
Brand: AVENTICS
SKU: 753831-de-eur
Price: 40.36 EUR
Availability: InStock

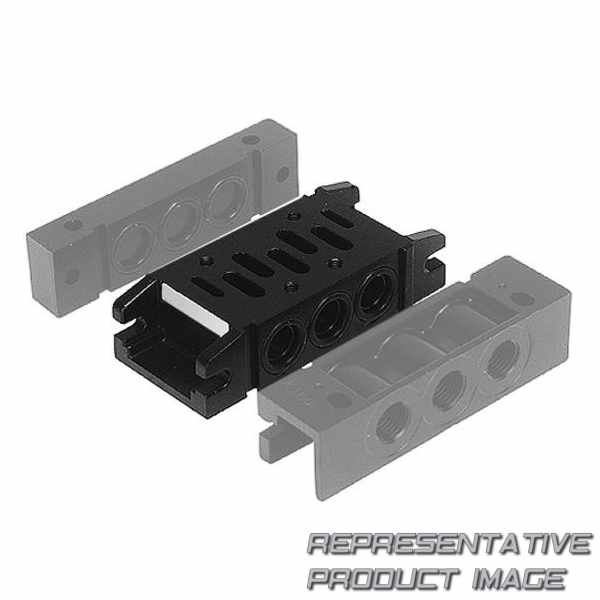

SUB BASE

40,36 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	16 bar
Dichtung	acrylonitrile butadiene rubber

Gewicht	140g

Typ		base plate
compressed air connection 2 / 4		g 1/8
exhaust (3,5)		uncollected exhaust
frame size		iso 1
working pressure min.		-1 bar
min. ambient temperature		-20 °c
min. medium temperature		-20 °c
Medium		compressed air
Gewicht		0.14 kg
seal material		acrylonitrile butadiene rubber

direction of pneumatic port (2,4)		down
exhaust type		ports separated
compressed air connection 14		g 1/8
Standards		iso 5599-1
working pressure max		16 bar
max. ambient temperature		70 °c
max. medium temperature		70 °c
Max. number of valve positions		1
Material base plate		die-cast aluminum
