| Material base plate | die-cast aluminum | ||
| Max. number of valve positions | 1 | ||
| max. medium temperature | 70 °c | ||
| max. ambient temperature | 70 °c | ||
| working pressure max | 10 bar | ||
| port 3 / 5 | g 1/8 | ||
| compressed air connection 2 / 4 | g 1/8 | ||
| compressed air connection 1 | g 1/8 | ||

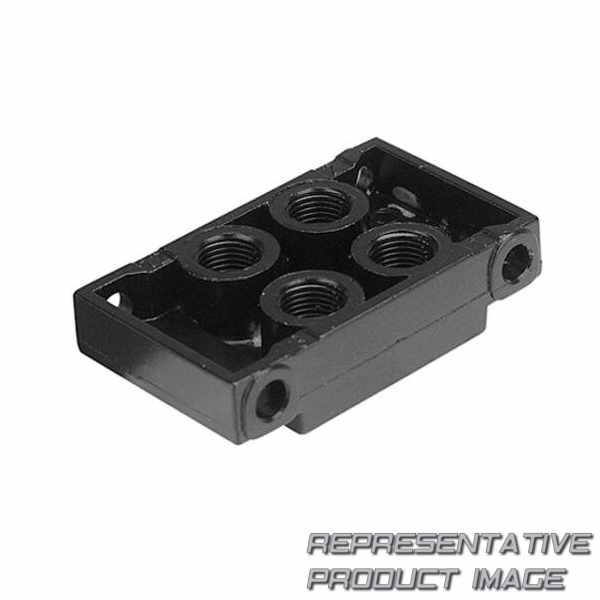

| Typ | base plate |
| Gewicht | 0.037 kg | ||
| Medium | compressed air | ||
| min. medium temperature | -20 °c | ||
| min. ambient temperature | -20 °c | ||
| working pressure min. | 0 bar | ||
| direction of pneumatic port (3,5) | down | ||
| direction of pneumatic port (2,4) | down | ||
| direction of pneumatic port (1) | down |
