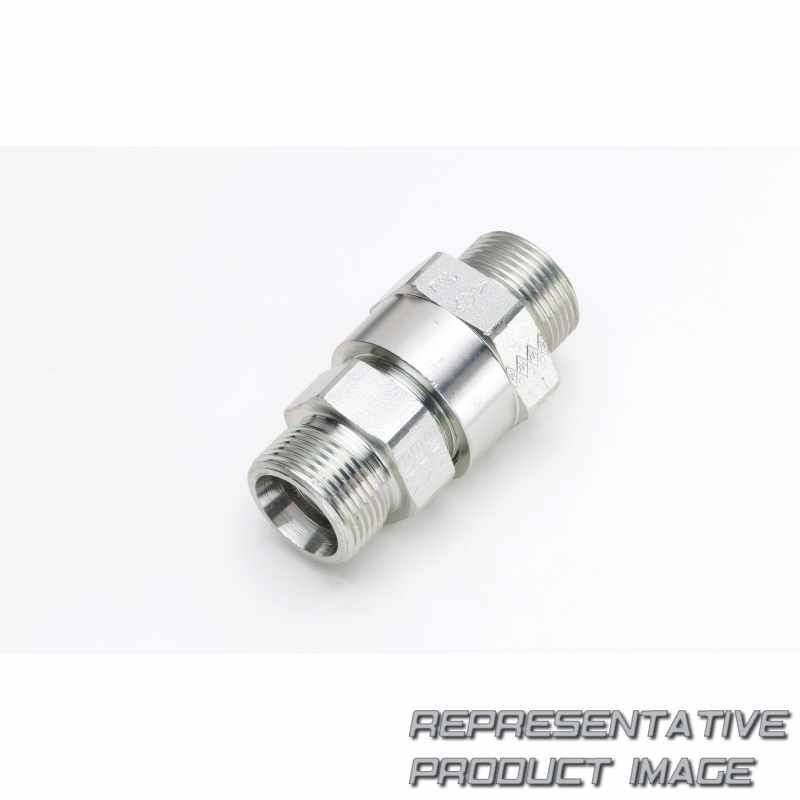

| quick disconnect coupling | cplng, refrig female half | ||
| a (mm) | 41,40 | ||
| b (in) | 1,31 | ||
| body size | 8 | ||
| coupling type | female | ||
| dust cap (with gasket) | 5400-s6-8 | ||
| family | 5400 series | ||
| fluid loss (cc. max) | 0,10 | ||
| hex1 (mm) | 25,40 | ||
| hex2 (mm) | 30,20 | ||
| max. operating pressure (connected)- hydraulic (ps | 1.750 | ||
| max. operating pressure (disconnected) (psi) | 400 | ||
| min. burst pressure- connected (psi) | 5.200 | ||
| rated flow (gpm) | 14 | ||
| Typ | no adapter |
| a (in) | 1,63 | ||
| air inclusion (cc. max) | 0,10 | ||
| b (mm) | 33,30 | ||
| coupling size | 8 | ||
| description | no adapter | ||
| dust plug (with gasket) | 5400-s8-8 | ||
| fig. | 2 | ||
| hex1 (in) | 1 | ||
| hex2 (in) | 1,19 | ||
| max. operating pressure (connected)- hydraulic (ba | 121 | ||
| max. operating pressure (disconnected) (bar) | 28 | ||
| min. burst pressure- connected (bar) | 359 | ||
| rated flow (lpm) | 53 | ||
| sub-title | low air inclusion refrigerant | ||
| vaccum (connected only ) (in./hg) | 28 |
