| Inner diameter shaft washer | d | 50 | mm |
| Höhe | T | 34,30 | mm |
| Basic static load rating, axial | C0a | 169,000 | |
| Limiting speed | nG | 3,550 |
| Outer diameter housing washer | D | 95 | mm |
| Basic dynamic load rating, axial | Ca | 82,000 | |
| Fatigue load limit, axial | Cua | 7,700 | |
| Reference speed | nϑr | 6,400 |

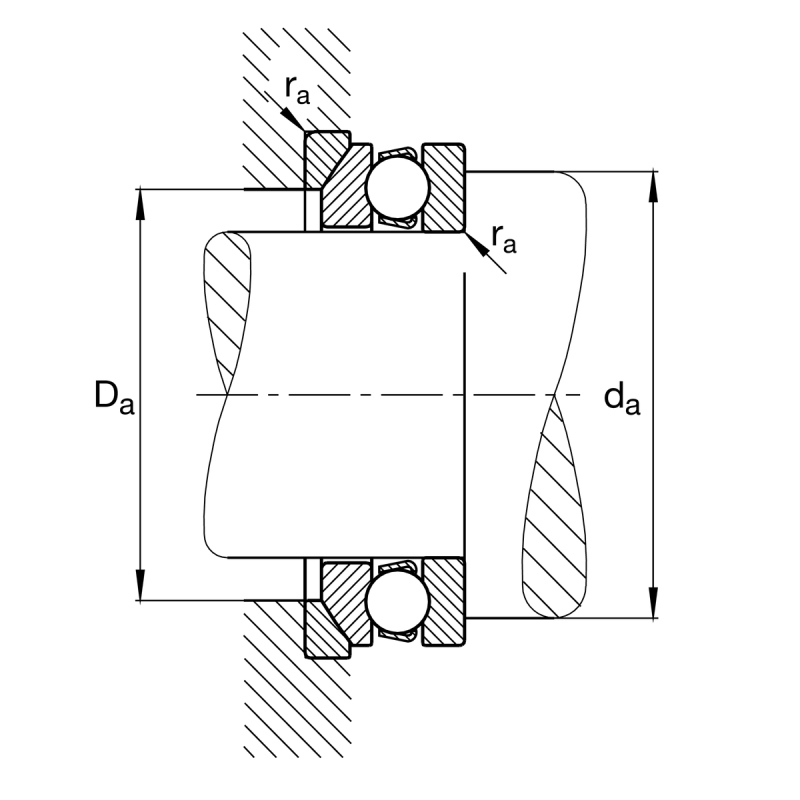

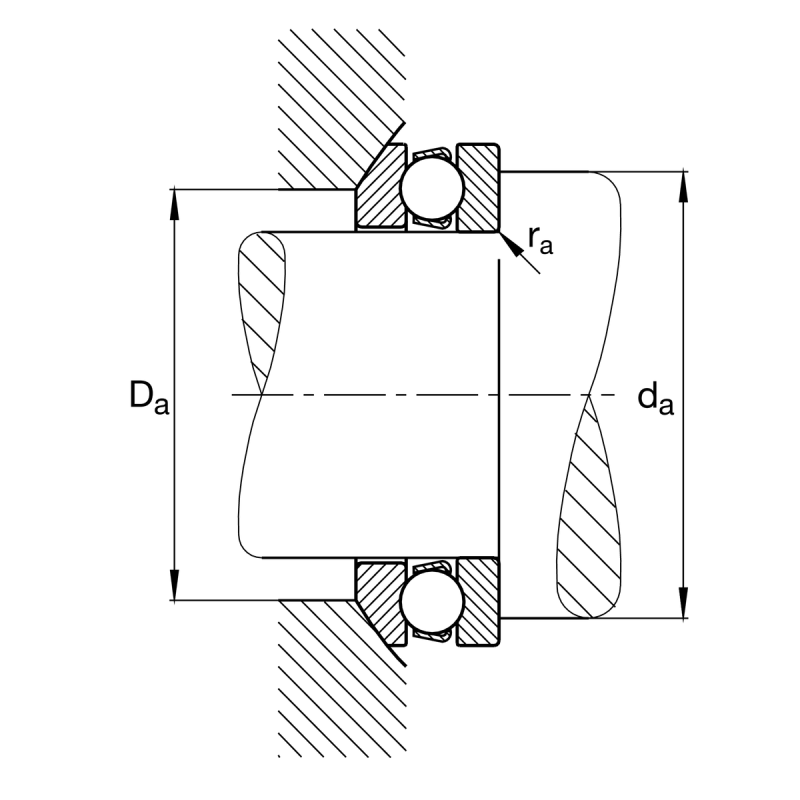

| Minimum diameter shaft shoulder | da min | 77 | mm |
| Maximum filled radius | ra max | 1 | mm |
| Maximum diameter of housing shoulder | Da max | 72 | mm |
| Minimum chamfer dimension | rmin | 1,10 | mm |

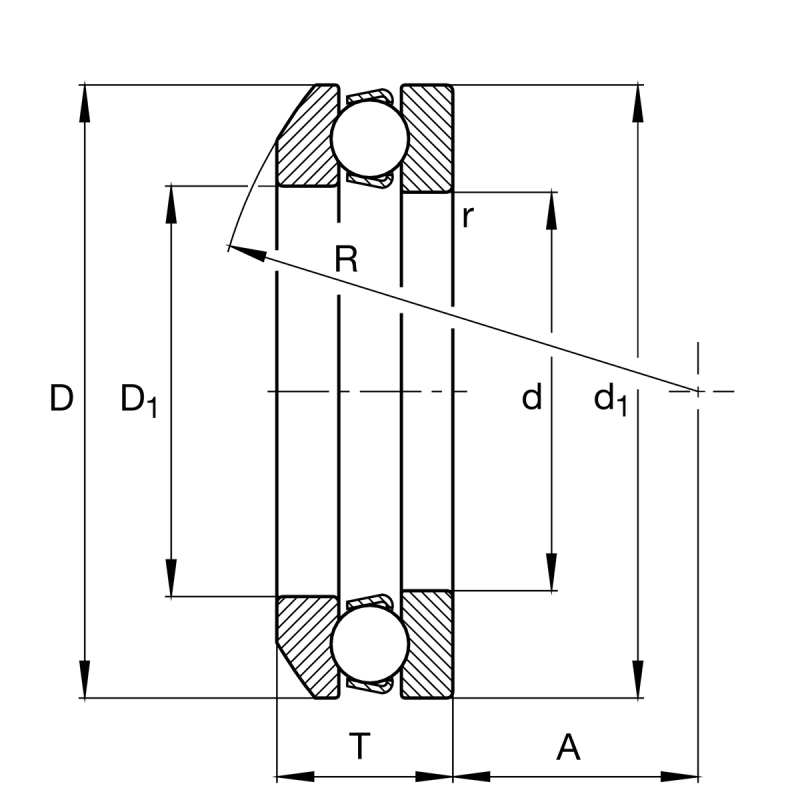

| Distance of the center point | A | 28 | mm |

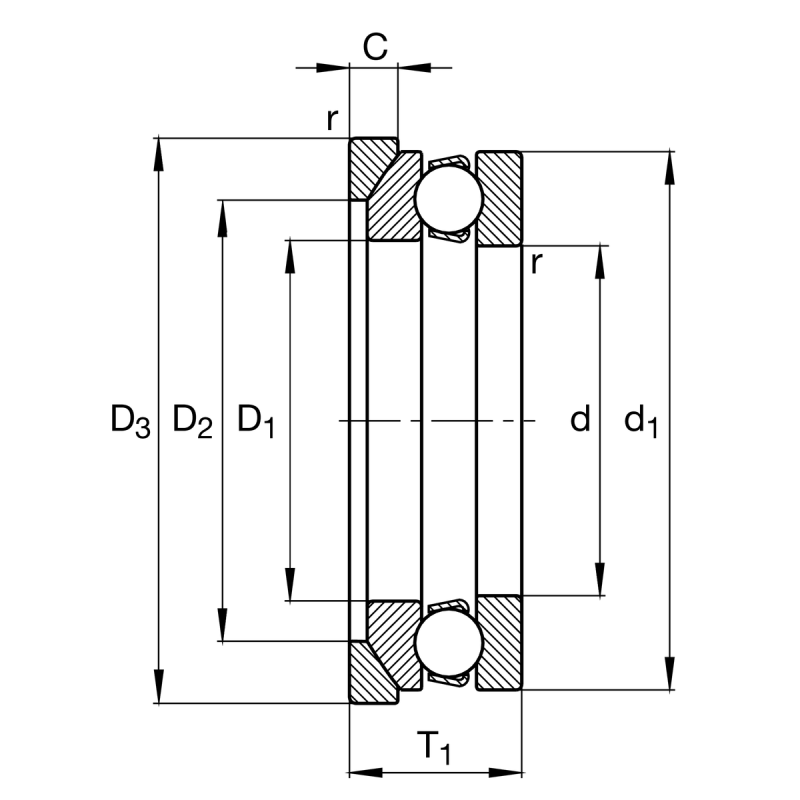

| Outer diameter shaft washer | d1 | 95 | mm |
| Height with seat washer | T1 | 37 | mm |
| Hersteller | Teilenummer |
|---|---|
| SKF | 53310 (SKF) |
