| Minimum chamfer dimension | rmin | 2 | mm |
| Height shaft washer | B | 21 | mm |
| Maximum filled radius | ra max | 1 | mm |
| Maximum diameter shaft shoulder | da max | 180 | mm |
| Maximum diameter of housing shoulder | Da max | 208 | mm |
| Reference speed | nϑr | 2,120 | |
| Fatigue load limit, axial | Cua | 32,500 | |
| Basic dynamic load rating, axial | Ca | 305,000 | |

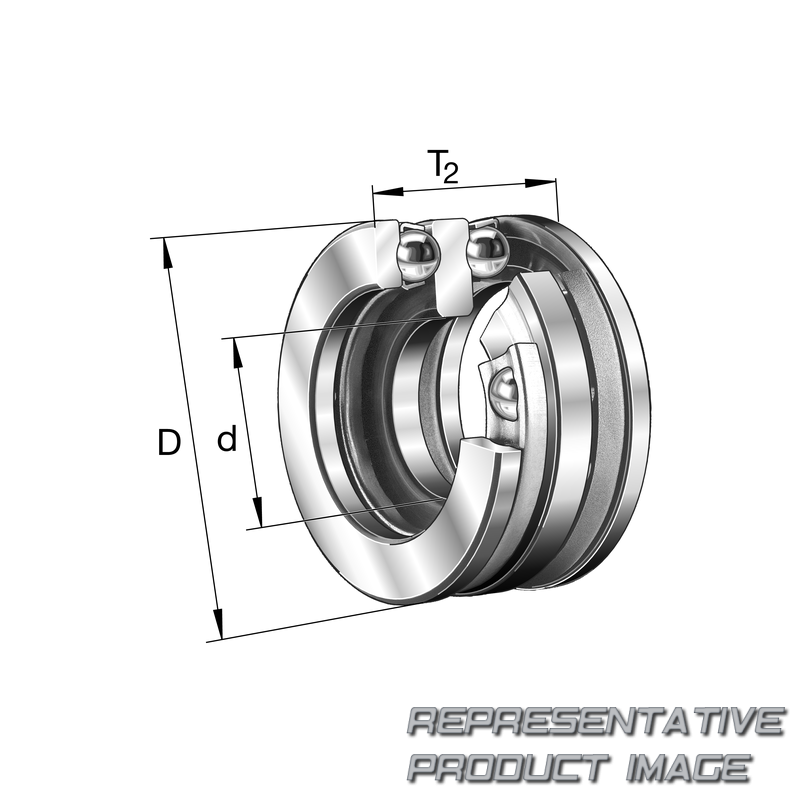

| Outer diameter housing washer | D | 250 | mm |
| Limiting speed | nG | 1,670 | |
| Basic static load rating, axial | C0a | 1,030,000 | |
| Höhe | T | 98 | mm |
| Inner diameter shaft washer | d | 150 | mm |
