PARKER 462PU-8-8

56,76 € /m 113,52 € /m -50%
verfügbar mit 3 bis 7 Tagen Lieferzeit nach United States

Technische Daten

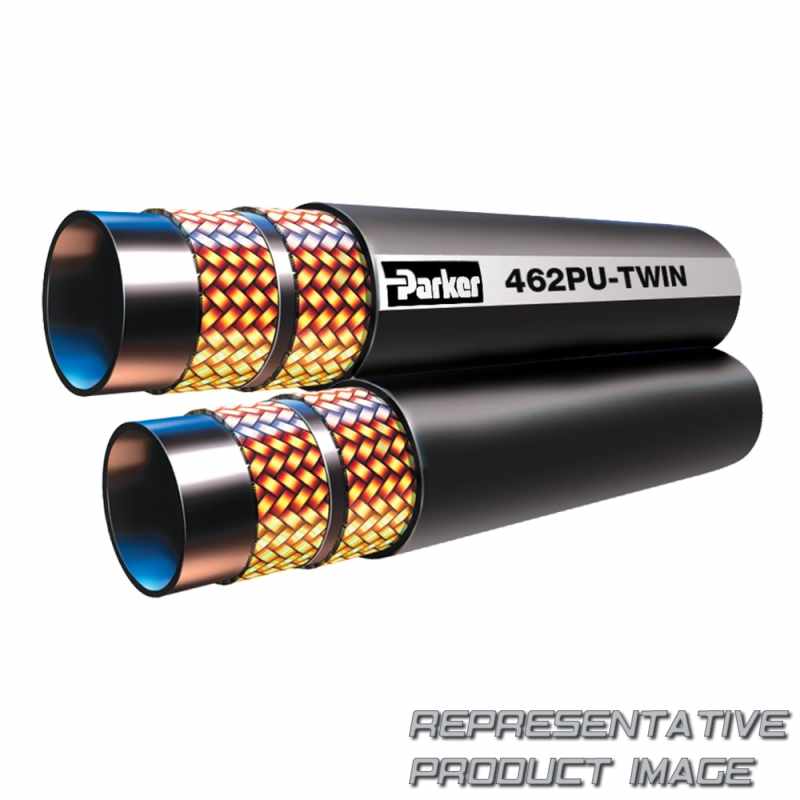

Parker Elite No-Skive Compact Hose 462 has been designed for a working pressure up to 42,5 MPa and a temp. range from -40 °C up to +100 °C. The hose range is compatible with No-Skive fittings in steel and stainless steel

max. Druck 4495 psi, 31 mpa, 310 bar
Gewicht 1.000g
hose cover type polyurethane
hose i.d. (size) -8
Brand parker
industry general industrial, off-road machinery
technology fluid & gas handling
product style no-skive compact
hose inside diameter 12.7 mm, 1/2 inch
minimum bend radius 130 mm, 5.118 inch
cover color black
Maximale Betriebstemperatur 100 °c (water: 85 , air: 70), 212 °f (water: 185, air: 158)
specifications met en 857 2sc, iso 11237 type 2sc, en 857 2sc - iso 11237 type 2sc
cover material premium-quality polyurethane
hose reinforcement material 2 high tensile steel wire braids
hose type twin line
media hydraulic fluids on a mineral-oil basis, water-glycol & lubricating oils, coolants i.e. glycol, industrial air, lubricants, mineral hydraulic oil, water
division polymer hose division europe
Anwendung lifting platforms, telehandlers, cranes, aerial lift, over-the-sheave, reel applications
Produktfamilie hydraulic hose
maximum operating pressure 4495 psi, 31 mpa, 310 bar
hose outside diameter 41.5 mm, 1.633 inch
design factor 4:1
compatible fitting 48 series
Minimale Betriebstemperatur -50 °c, -58 °f
materials of construction rubber
hose inner tube material nitrile nbr
Gewicht 1 kg/m, 0.67 lb/ft
56,76 € /m
Lagerbestand verfügbar
Teilenummer 462PU-8-8
Hersteller PARKER
Menge Stückpreis
1+ 56,76 € /m
