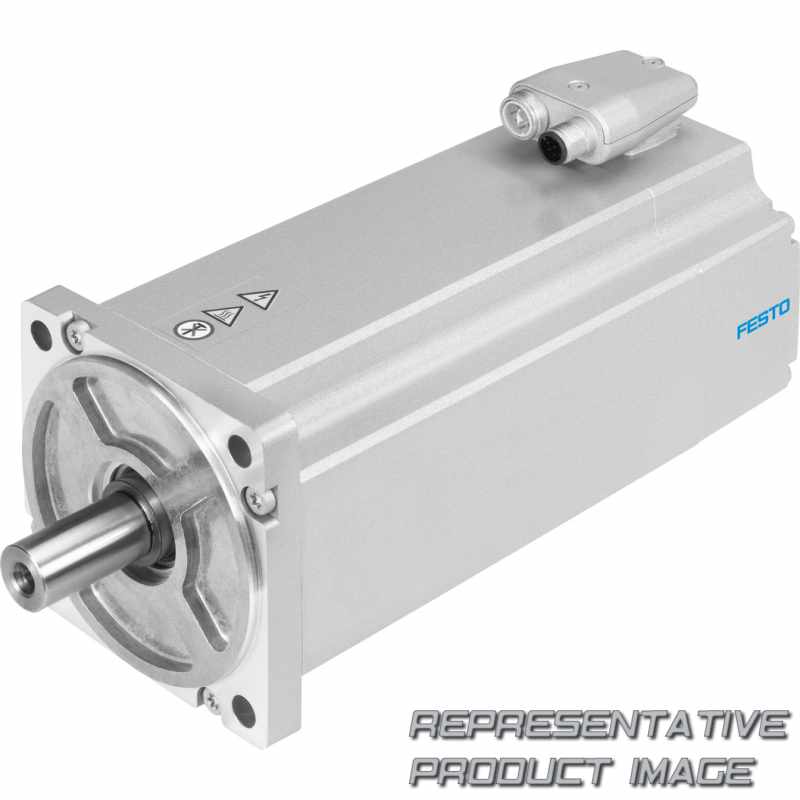

FESTO 4267601 Servomotor

Name: 4267601 FESTO
Brand: FESTO
SKU: 756482-de-eur
Price: 2170.25 EUR
Availability: SoldOut

EMME-AS-100-M-HS-AMXB

2.170,25 € ~~3.617,08 €~~ -39%

Begrenzter Lagerbestand nur auf Anfrage erhältlich

Technische Daten

Winding (HS)	High voltage, standard
Elektrischer Anschluss (A)	Angled plug
Measuring unit (MX)	Absolute safety encoder, multi-turn, Hiperface
Brake (B)	With brake

Energy efficiency		ENEFF (CN) / Class 2
Mean time to failure (MTTF), subcomponent		1037 years, holding brake
PFHd, subcomponent		1.3 x 10E-8, rotor position sensor
Safety Integrity Level (SIL), subcomponent		SIL 2, rotor position sensor SILCL 2, rotor position sensor
Mass moment of inertia of brake		0,654 kgcm²
Operating voltage DC for brake		24 V
Rot. pos. enc., typ. ang. acc.		20 arcmin
Rotor pos. enc., sin/cosin p/r		128
Rotor position encoder interface		HIPERFACE®
Permissible radial shaft load		680 N
Produktgewicht		8.550 g
Phase-phase winding inductance		12 mH
Voltage constant, phase-to-phase		101,4 mVmin
Peak current		18,4 A
Continuous stall current		4,6 A
Drehzahl max.		3.941 rpm
Peak torque		30 Nm
Standstill torque		7,5 Nm
Type of winding switch		Star inside
Nennbetriebsspannung DC		565 V
Zulassung		RCM trademark c UL us - Recognized (OL)
Korrosionsbeständigkeitsklasse KBK		0 - No corrosion stress
Electrical connector system		Plug
Rating class as per EN 60034-1		S1
Entspricht Norm		IEC 60034
Lagertemperatur		-20 °C ... 70 °C

Mean time to dangerous failure (MTTFd), subcomponent		874 years, rotor position sensor
Duration of use Tm, subcomponent		20 years, rotor position sensor
Performance Level, subcomponent		Category 3, performance level d, rotor position encoder
Switching cycles holding brake		5 million idle actuations (without friction work!)
Power consumption, brake		18 W
Brake holding torque		9 Nm
Rotor pos. encoder, typ. res.		15 bit
Rotor position sensor, encoder measuring principle		Optical
Rotor position sensor		Absolute multi-turn safety encoder
Permissible axial shaft load		136 N
Total mass moment of inertia of output		7,2 kgcm²
Phase-phase winding resistance		3,2 Ohm
Motor constant		1,561 Nm/A
Nominal motor current		4,1 A
Nominal power rating of motor		2.000 W
Nominal rotary speed		3.000 rpm
Nenn-Anziehdrehmoment		6,4 Nm
Number of pole pairs		3
Nominal voltage DC		565 V
CE-Zeichen (siehe Konformitätserklärung)		To EU EMC Directive To EU Low Voltage Directive
LABS-Konformität		VDMA24364 zone III
Werkstoff-Hinweis		RoHS-compliant
Schutzart		IP21
Insulation protection class		F
Relative Luftfeuchtigkeit		0 - 90%
Umgebungstemperatur		-10 °C ... 40 °C
