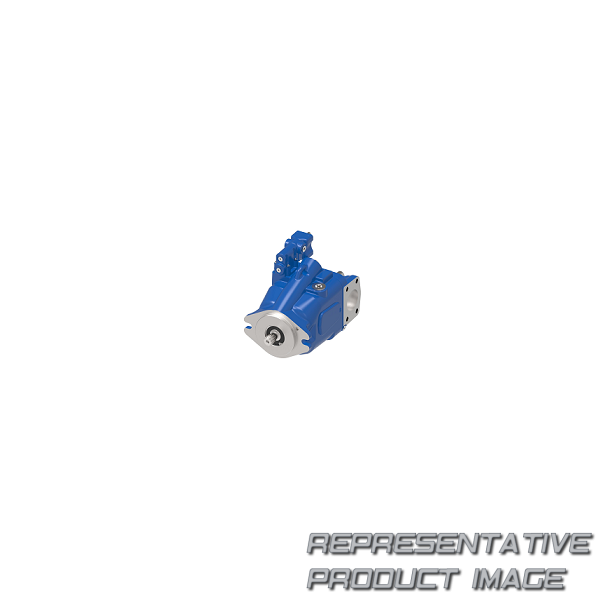

| pumps | 3.80 cid(62cc)420 code c | ||
| Schluckvolumen | 062 : 62,3 cm3/r [3.80 in3/r] | ||
| front mounting & input shaft | 32 : 2/4 bolt c (sae j744-127-2/4) with 14 tooth 12/24 spline (ansi b92.1-1996 mod.), shaft extension 55,5 [2.19] | ||
| drain port size & location | 1 : 1.0625-12 unf-2b o-ring port - top | ||
| controller type | ah : pressure and flow compensator with torque control and .4375-20 sae o-ring load sense port left side | ||
| flow compensator setting | 28 : 26,20-28,96 bar [380-420 lbf/in2] | ||
| control special feature | 00 : no control special features | ||
| auxiliary (rear) mount & output shaft | ac : dual sae j744 flange 101-2 (2 bolt b); accepts 13t 16/32 spline with 41,2 (1.62) extension (coupler and aux. mount o-ring included) | ||
| pump special features | 00 : no pump special features | ||
| identification / packaging | 00 : mark danfoss product number and full model code on label / individual box packaging |
| code title | adu : pressure compensated/pressure flow compensated open circuit piston pump | ||
| input shaft rotation | r : right-hand rotation (cw) right side suction port, left side pressure port | ||
| main ports size & location | ab : side ports; suction - 2.00 sae j518 4-bolt split flange port standard pressure series (code 61); pressure - 1.00 sae j518 4-bolt split flange port standard pressure series (code 61) | ||
| diagnostic pressure ports | 3 : .4375-20 unf-2b sae o-ring ports - suction and pressure ports - plugged | ||
| pressure compensator setting | 28 : 206,8-213,7 bar [3000-3100 lbf/in2] | ||
| torque control setting | ag : 107 nm [950 in-lbs] (41,49,62,80) | ||
| maximum displacement option | 01 : standard displacement (as given in code title) | ||
| Wellendichtung | 5 : single fluorocarbon rubber shaft seal in 2/4 bolt c mount pump housing | ||
| paint | 0b : black per spec 209-13b | ||
| design code | c : third design |
