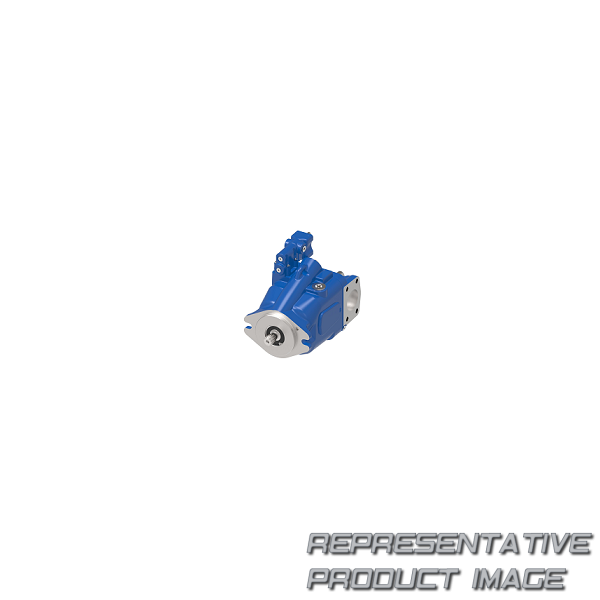

| pumps | 3.00 cid(49cc)420 code c | ||
| Schluckvolumen | 049 : 49,2 cm3/r [3.00 in3/r] | ||
| front mounting & input shaft | 02 : 2 bolt b (sae j744-101-2) with 25,4 [1.00] dia straight key shaft (sae j744-25-1) (key included) | ||
| drain port size & location | 1 : 1.0625-12 unf-2b o-ring port - top | ||
| controller type | ac : pressure compensator | ||
| flow compensator setting | 00 : no flow compensator setting | ||
| control special feature | 00 : no control special features | ||
| auxiliary (rear) mount & output shaft | 00 : no auxiliary mounting features | ||
| pump special features | 00 : no pump special features | ||
| identification / packaging | 00 : mark danfoss product number and full model code on label / individual box packaging |
| code title | adu : pressure compensated/pressure flow compensated open circuit piston pump | ||
| input shaft rotation | l : left-hand rotation (ccw) left side suction port, right side pressure port | ||
| main ports size & location | ad : side ports; suction - 2.00 4-bolt split flange port standard pressure series (code 61) with m12 x 1.75 thread; pressure - 1.00 4-bolt split flange port standard pressure series (code 61) with m10 x 1.5 thread | ||
| diagnostic pressure ports | 0 : no diagnostic pressure ports | ||
| pressure compensator setting | 43 : 275,8-282,7 bar [4000-4100 lbf/in2] | ||
| torque control setting | 00 : no torque control or secondary compensator | ||
| maximum displacement option | 02 : external manual stroke adjustment (set at maximum) | ||
| Wellendichtung | 1 : standard polyacrylate shaft seal | ||
| paint | cd : blue primer per spec 209-13cd | ||
| design code | c : third design |
