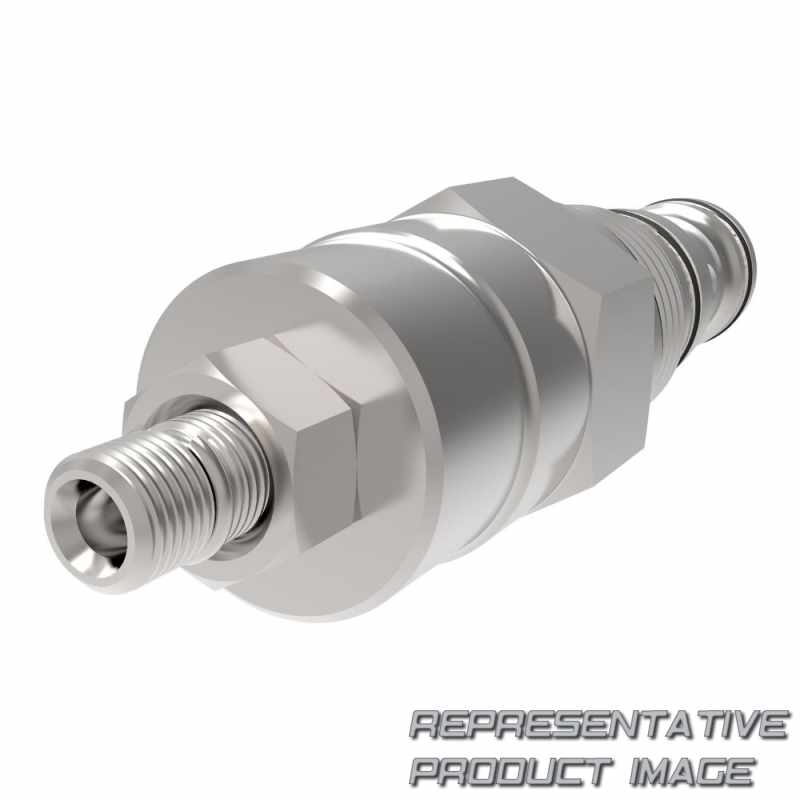

| screw-in cartridge valves | 1ce140; danfoss screw-in cartridge valve; overcenter; standard | ||
| Einstellung | -f : screw adjustment | ||
| pressure range | -30 : 220 -330 bar ; std setting - 270 bar | ||
| Vorsteuerverhältnis | 6 : 6;1 | ||
| special features | no special features |
| Baureihe | 1ce140 : over center valve -pilot assisted relief with check valve-140 l/min - catridge only | ||
| Anschlussgröße | valve only | ||
| Dichtung | s : nitrile (for use with most industrial hydraulic oils) | ||
| body material | none |
