| screw-in cartridge valves | 1ce20; danfoss screw-in cartridge valve; overcenter; standard | ||
| Einstellung | -f : screw adjustment | ||
| pressure range | -35 : 200 - 350 bar ; std setting - 210 bar | ||
| Vorsteuerverhältnis | 3 : 3;1 | ||
| special features | no special features |

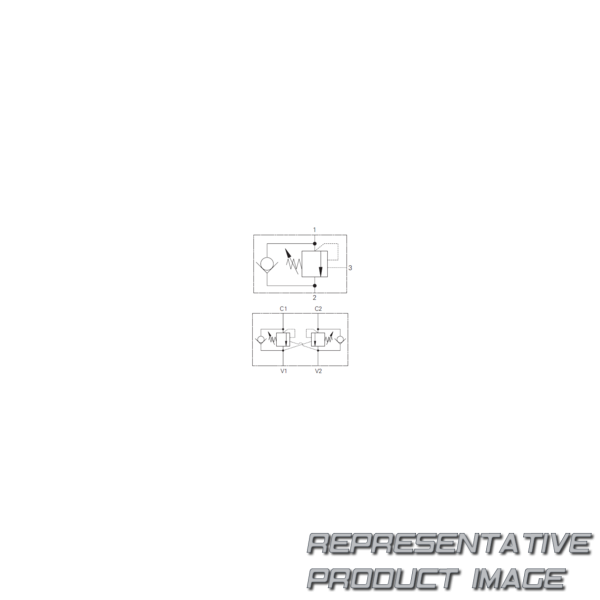

| Baureihe | 1ce20 : over center valve -pilot assisted relief with check valve-20 l/min - catridge only | ||
| Anschlussgröße | cartridge only | ||
| Dichtung | s : nitrile (for use with most industrial hydraulic oils) | ||
| body material | aluminum (for pressure setting < 210 bar) | ||
| special pressure setting | * : special pressure setting in bar |
