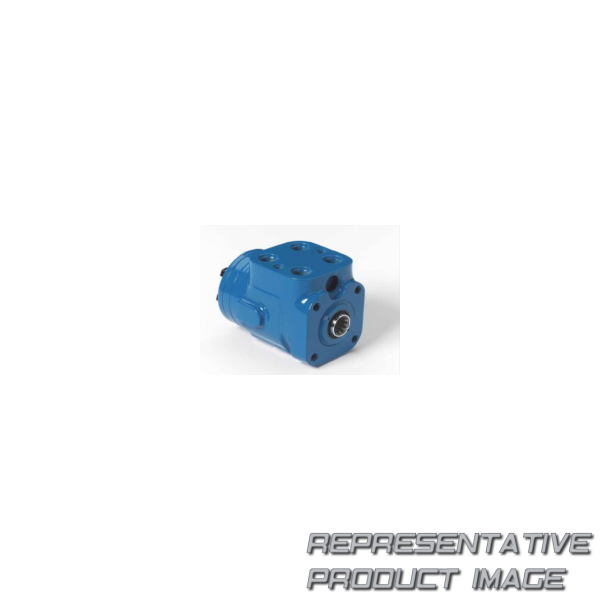

| steering systems | xcel 45 | ||
| unit type | a : standard | ||
| inlet pressure rating | 1 : 190 bar [2755 lbf/in2] | ||
| Schluckvolumen | 07 : 160 cm3/r [9.8 in3/r] | ||
| neutral circuit | a : open center | ||
| valve options | 07 : cylinder relief valve, anti-cavitation valve, inlet check valve, inlet relief valve, manual steering check valve | ||
| cylinder relief valve setting | 34 : 235 bar [3407 lbf/in2] | ||
| additional ports | aa : none | ||
| mechanical interface | a : internal involute spline, 12 tooth 16/32 dp 30 degree pa | ||
| fluid type | a : reference danfoss technical bulletin 3-401 | ||
| paints & packaging | 1 : black paint | ||
| design code | a : 001 |
| Produkt | asl : xcel45 | ||
| nominal flow rating | 2 : 22.7 l / min [6.00 gal/min] | ||
| return pressure rating | a : 21 bar [ 300 lbf/ in2] maximum | ||
| flow amplification | a : none | ||
| load circuit | a : non-load reaction | ||
| inlet or load sense relief valve setting | 25 : 175 bar [2537 lbf/in2] | ||
| p,t,l,and r port size | e : 4x g .500 bsp straight thd port | ||
| mounting threads | a : 4-m10x1.5 mounting threads on mounting face | ||
| Eingangsdrehmoment | 3 : standard | ||
| special features | aa : none | ||
| identification | 0 : danfoss product number on nameplate | ||
| port face threads | b |
