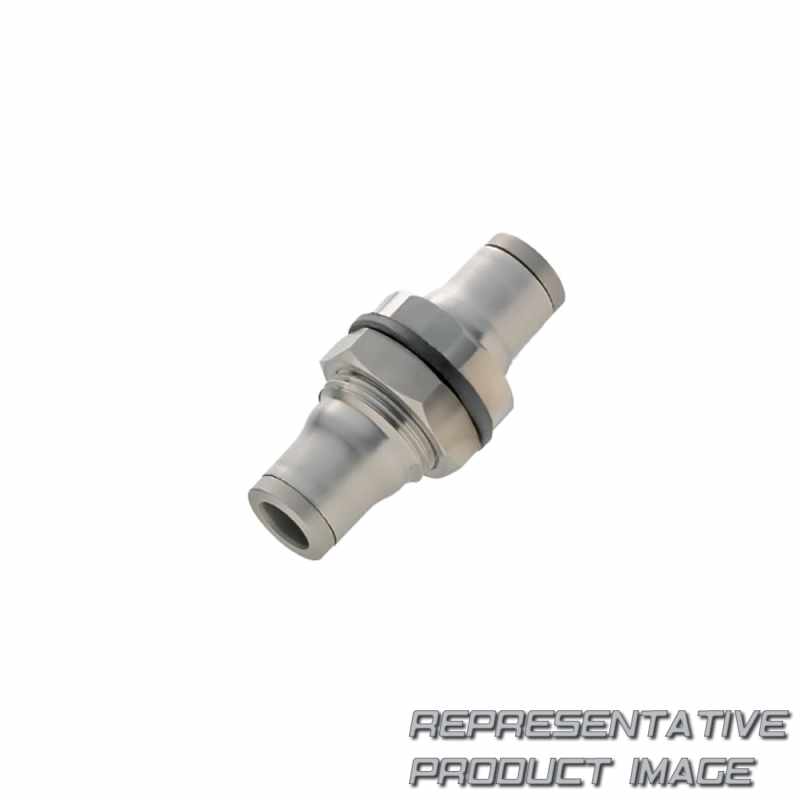

PARKER 3816 08 00

Name: 3816 08 00 PARKER
Brand: PARKER
SKU: 805171-de-eur
Price: 89.03 EUR
Availability: InStock

89,03 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	30 bar, 435 psi, 290 to 435, 30.0
Dichtung	fkm

Gewicht	34g

materials of construction		nut: stainless steel 316l, collet: stainless steel 316l
quantity per box		2
seal material		fkm
specifications met		usda nsf h1: grease, rg: 1935/2004/ec, rg: 21cfr (fda), ul94 v-0: seal, rg : 1907/2006 (reach), di: 94/9/ec (atex), 2011/65/ec, di : 2002/95/ec (rohs), di: 97/23/ec (ped), iso 14743 pneumatic transmissions
Minimale Betriebstemperatur		-4 °f, -20 °c
hex size		19 mm
Anschlussart		tube to tube
product series		lf 3800
Produktfamilie		push-to-connect fittings
Anwendung		medical, chemical, pharmaceutical, petrochemical, paper industry, food process
division		low pressure connectors europe division
shape		straight
connection 2 size		8 mm
configuration		tube to tube

maximum operating pressure		30 bar, 435 psi, 290 to 435, 30.0
Gewicht		0.034 kg
body material		stainless steel 316l
for fluid type		other fluids upon request, water, air
Maximale Betriebstemperatur		248 °f, 120 °c
connection 1 type		o.d.
vacuum pressure rating		1 bar, 14.5 psi, 755 mm-hg
product style		bulkhead
technology		pneumatics, fluid & gas handling
industry		pharmaceuticals, medical, chemicals processing, food & beverage
Brand		legris
connection 1 size		8 mm (o.d.)
connection 2 type		o.d.
