| motors | m33 hi-speed fxd mtr fc | ||
| Schluckvolumen | 33 : 54,34 cm3/r [3.316 in3/r] at 15.5 deg. swashplate angle | ||
| Design type | 3 : fixed clearance - (models 33-64) | ||
| main ports | b : [1.00] sae 4-bolt split flange port, high pressure series (code 62) | ||
| charge pressure relief valve | 1 : standard | ||
| high pressure relief valve - port a | 0 : none | ||
| high pressure relief valve - port b | 0 : none | ||
| speed sensor | 0 : no speed sensor | ||
| paint and packaging | 0 : painted primer blue | ||
| design code | b : b |

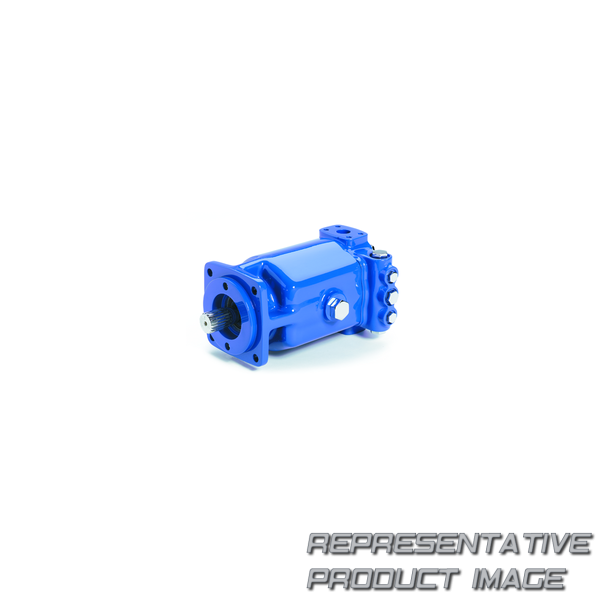

| Product identification | hhd : heavy duty hydrostatic fixed displacement motor | ||
| Typ | 3 : fixed displacement motor | ||
| output shaft | 14 : 14 tooth 12/24 pitch spline (models 33-64) | ||
| end cover and composite valve block assy | h : integral shuttle valve with high-rate shuttle valve springs and charge pressure relief valve | ||
| charge pressure relief valve setting | f : 16,6 bar [240 lbf/in2] | ||
| high pressure rel valve setting - port a | 0 : none | ||
| high pressure rel valve setting - port b | 0 : none | ||
| special features | 00 : no special features | ||
| identification on unit | 0 : standard |
