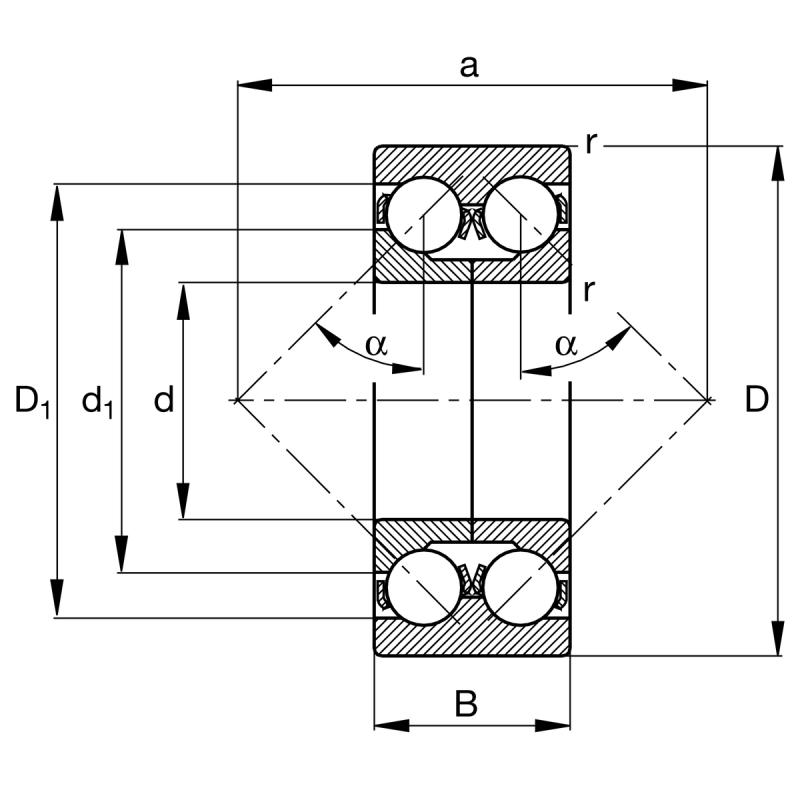

| Contact angle | α | 45 | ° |
| Shoulder diameter inner ring | d1 | 48,20 | mm |
| Minimum chamfer dimension | rmin | 1,10 | mm |
| Distance between the apexes of the pressure cones | a | 67 | mm |
| Shoulder diameter outer ring | D1 | 61,50 | mm |
| Maximum fillet radius | ra max | 1 | mm |
| Minimum diameter shaft shoulder | da min | 37 | mm |
| Maximum diameter of housing shoulder | Da max | 65 | mm |
| Reference speed | nϑr | 7,500 | |
| Fatigue load limit, radial | Cur | 1,870 | |
| Basic dynamic load rating, radial | Cr | 41,500 | |

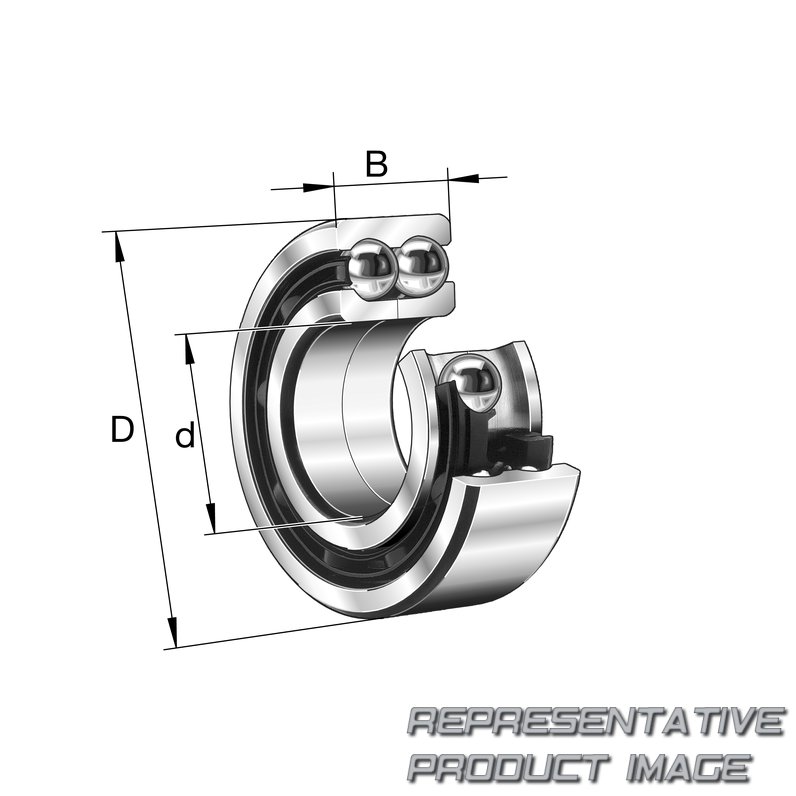

| Außen-Ø | D | 72 | mm |
| Limiting speed | nG | 10,900 | |
| Basic static load rating, radial | C0r | 34,500 | |
| Breite | B | 30,20 | mm |
| Bore diameter | d | 30 | mm |
