| connection 2 size | 12 mm (o.d) | ||
| product style | push-in fitting | ||

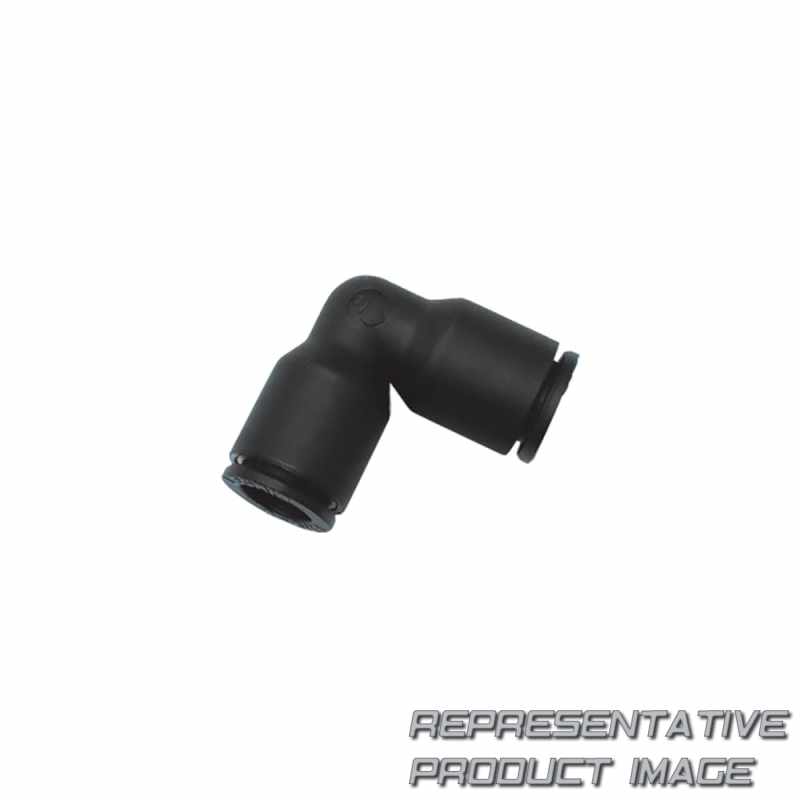

| shape | elbow 90° | ||
| o-ring material | nbr | ||
| maximum operating pressure | 20 barg | ||
| Maximale Betriebstemperatur | 80 °c | ||
| quantity per box | 10 | ||
| Anwendung | robotics, automotive process, pneumatics, semi-conductors, textile, packaging, vacuum | ||
| specifications met | iso 14743, di: 97/23/ec (ped), di : 2002/95/ec (rohs), 2011/65/ec, di : 1907/2006 (reach) |
| connection 1 size | 10 mm (o.d) | ||
| configuration | tube to tube | ||
| body material | technical polymer | ||
| gripping ring material | stainless steel | ||
| Minimale Betriebstemperatur | -20 °c | ||
| vacuum pressure rating | 755 mm-hg | ||
| Gewicht | 0,020 kg | ||
| media | compressed air, other fluids: please consult us |
