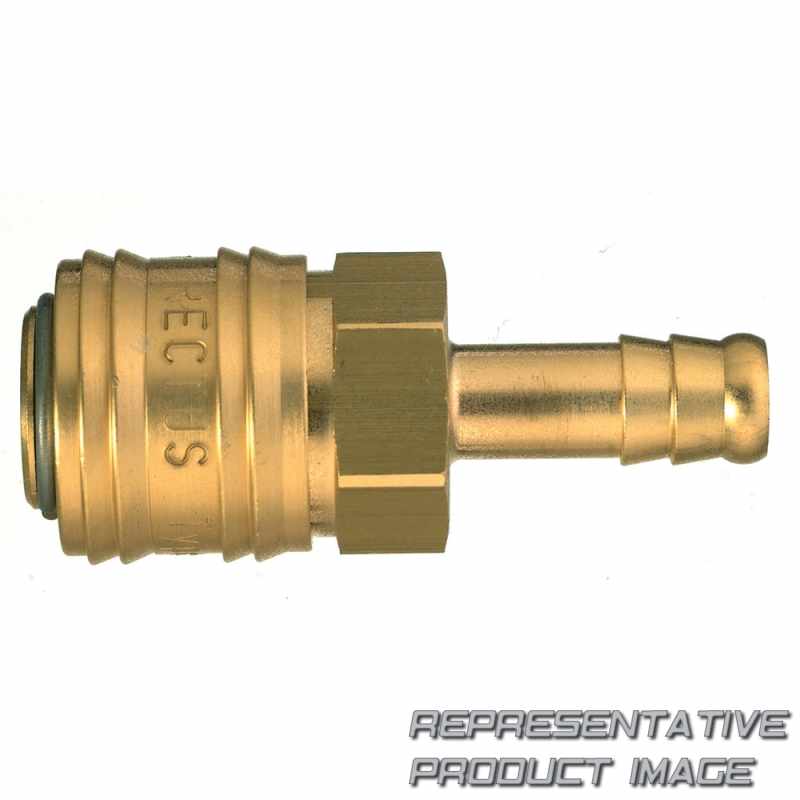

PARKER 26KBTS06MPX

34,66 € 3 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Basic quick coupling system with nominal diameter 7.2 for pneumatic and fluid handling applications up to 35 bar. Coupling system with European standard industrial profile. Available made of brass or stainless steel.

max. Druck 35 bar
Max. Volumenstrom 700 l/min
Dichtung nbr
hose i.d. (mm) 6
Ausführung double shut-off
Typ coupling
Diameter 7,2 nom
Length 60 mm
seal material nbr
Maximale Betriebstemperatur 100 °c
flow rate 700 l/min
external hex (mm) 21
Material brass
Anschlussart panel mount with hose barb
valve included yes
Außen-Ø 25 mm
Minimale Betriebstemperatur -20 °c
maximum operating pressure 35 bar
34,66 €
Lagerbestand 3 Stk.
Teilenummer 26KBTS06MPX
Hersteller PARKER
Menge Stückpreis
1+ 34,66 €
