Technische Daten

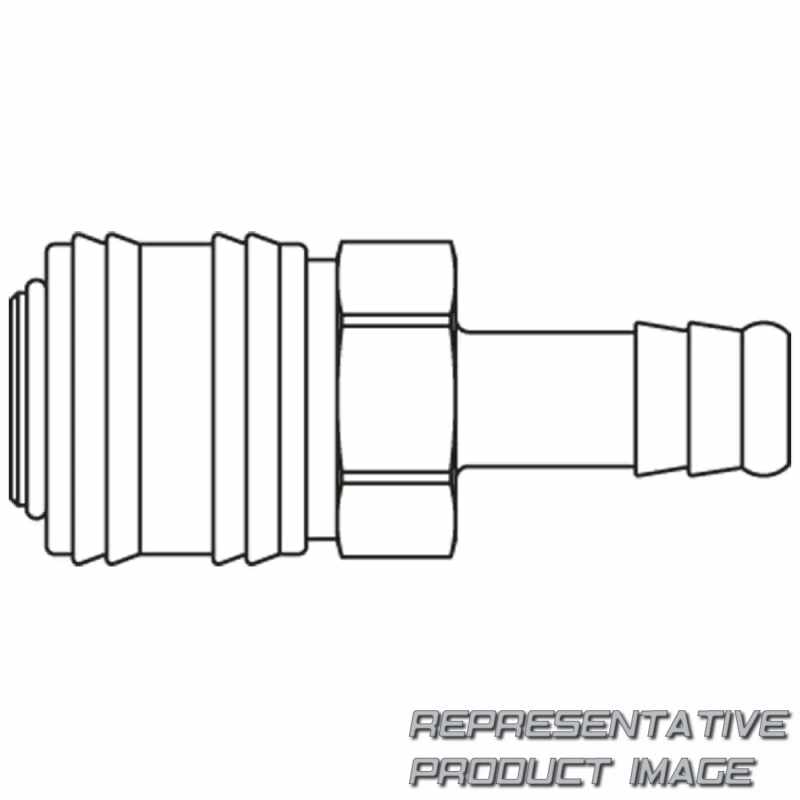

Basic quick coupling system with nominal diameter 7.2 for pneumatic and fluid handling applications up to 35 bar. Coupling system with European standard industrial profile. Available made of brass or stainless steel.
| Connection Thread Size (mm) | na | ||
| Hose I.D. (mm) | 6 | ||
| External Hex (mm) | 21 | ||
| Connection Thread Size (inch) | na | ||
| Valve Included | Yes | ||
| Maximum Operating Pressure | 35 bar |
| Typ | Coupling | ||
| Ausführung | Double Shut-Off | ||
| Material | Brass | ||
| Diameter | 7,2 nom | ||
| Länge | 58 mm | ||
| Flow Rate | 700 L/min |
