| Brand | SNR | ||

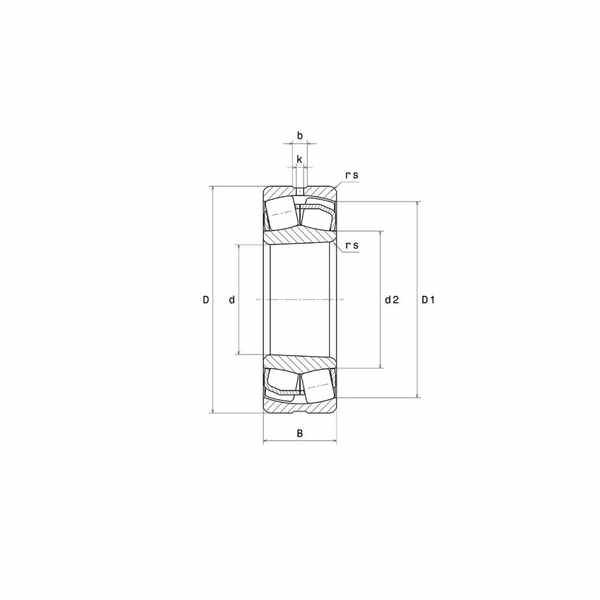

| rs - Min fillet radius | 2 mm | ||
| b - Groove width | 8,9 mm | ||
| Associated sleeve reference | H24028 | ||
| C - Dynamic load | 704 kN | ||
| Cu - Fatigue limit load | 98,6 kN | ||
| Y0 - Static axial load coefficient | 2,34 | ||
| Y2 - Upper axial load coefficient | 3,56 | ||
| Nlim - Mechanical Limit Speed | 2900 tr/min | ||
| Tmax - Max operating temperature | 200 °C | ||
| BPFI - Characteristic inner ring frequency | 13,333 Hz | ||
| BSF - Characteristic rolling element frequency | 8,74 Hz | ||

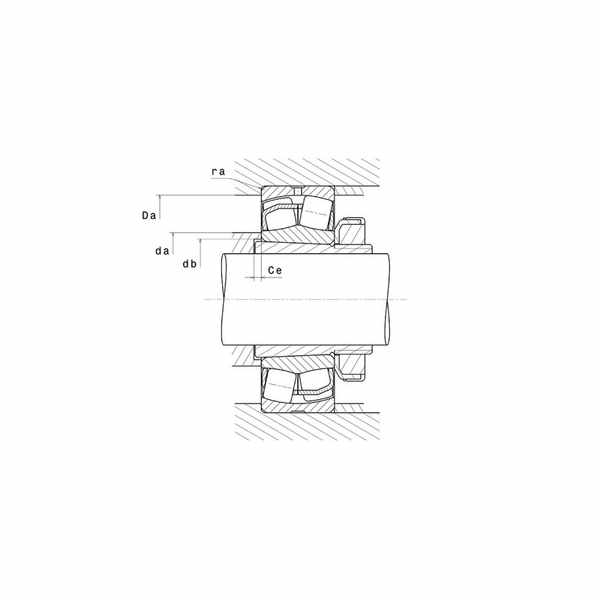

| da min - Min shoulder diameter IR | 148,8 mm | ||
| ra max - Max shaft & housing fillet radius | 2 mm |
| D1 - Inner diameter outer ring | 188,2 mm | ||
| Number of lubrication holes | 3 | ||
| k - Hole diameter | 4 mm | ||
| Radial clearance class | CN | ||
| C0 - Static load | 958 kN | ||
| e - Coefficient | 0,28 | ||
| Y1 - Lower axial load coefficient | 2,39 | ||
| Nref - Reference thermal speed | 2100 tr/min | ||
| Tmin - Min operating temperature | -40 °C | ||
| BPFO - Characteristic outer ring frequency | 10,667 Hz | ||
| FTF - Characteristic cage frequency | 0,444 Hz | ||
| da max - Max shoulder diameter IR | 0 mm | ||
| Da max - Max shoulder diameter OR | 201,2 mm |
