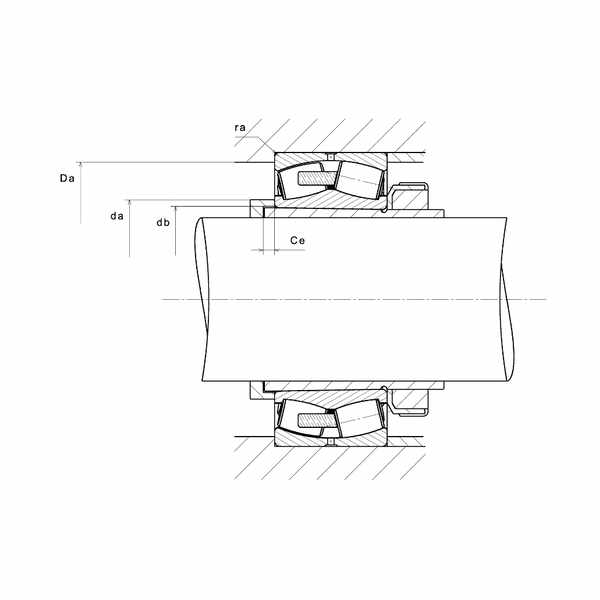

| ra max - Max shaft & housing fillet radius | 4 mm | ||
| Ce - Min length fro Sleeve | 6 mm | ||
| da min - Min shoulder diameter IR | 257 mm | ||
| FTF - Characteristic cage frequency | 0,429 Hz | ||
| BPFO - Characteristic outer ring frequency | 8,152 Hz | ||
| Tmin - Min operating temperature | -40 °C | ||
| Nlim - Oil lubrication limit speed | 1090 tr/min | ||
| Y1 - Lower axial load coefficient | 1,86 | ||
| e - Coefficient | 0,36 | ||
| C0 - Static load | 4260 kN | ||
| Radial clearance class | C3 | ||
| k - Hole diameter | 12 mm | ||
| Number of lubrication holes | 8 | ||

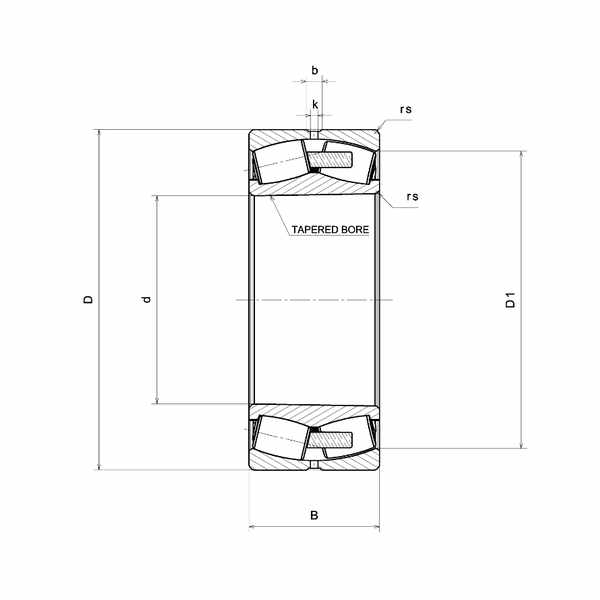

| D1 - Inner diameter outer ring | 372 mm |
| Da max - Max shoulder diameter OR | 423 mm | ||
| db - Min diameter for Sleeve | 257 mm | ||
| BSF - Characteristic rolling element frequency | 6,711 Hz | ||
| BPFI - Characteristic inner ring frequency | 10,848 Hz | ||
| Tmax - Max operating temperature | 200 °C | ||
| Nlim - Grease lubrication limit speed | 850 tr/min | ||
| Y2 - Upper axial load coefficient | 2,77 | ||
| Y0 - Static axial load coefficient | 1,82 | ||
| Cu - Fatigue limit load | 156 kN | ||
| C - Dynamic load | 3140 kN | ||
| Associated sleeve reference | H2348H | ||
| b - Groove width | 20 mm | ||
| rs - Min fillet radius | 4 mm | ||
| Brand | NTN |
