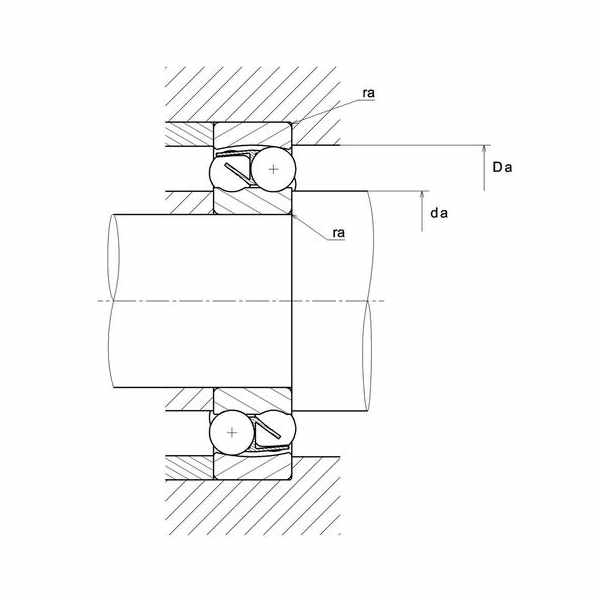

| ra max - Max shaft & housing fillet radius | 2,5 mm | ||
| da min - Min shoulder diameter IR | 108 mm | ||
| Tmin - Min operating temperature | -20 °C | ||
| Nlim - Oil lubrication limit speed | 3400 tr/min | ||
| Y1 - Lower axial load coefficient | 1,70 | ||
| e - Coefficient | 0,38 | ||
| C0 - Static load | 64,5 kN | ||
| Radial clearance class | CN | ||

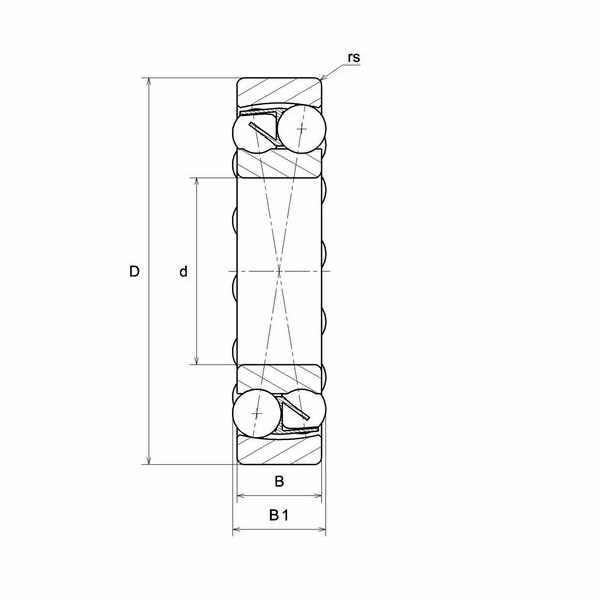

| B1 - overall width | 68 mm |
| Da max - Max shoulder diameter OR | 187 mm | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Grease lubrication limit speed | 2800 tr/min | ||
| Y2 - Upper axial load coefficient | 2,60 | ||
| Y0 - Static axial load coefficient | 1,80 | ||
| Cu - Fatigue limit load | 2,7 kN | ||
| C - Dynamic load | 161 kN | ||
| rs - Min fillet radius | 3 mm | ||
| Brand | NTN |
