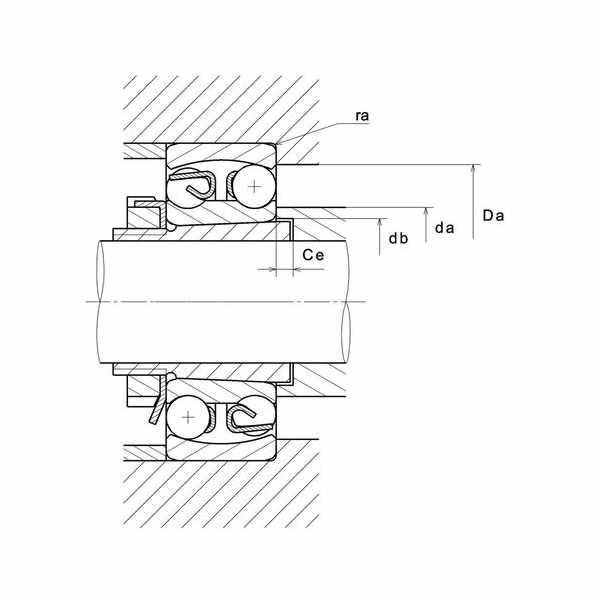

| ra max - Max shaft & housing fillet radius | 2 mm | ||
| Ce - Min length fro Sleeve | 5 mm | ||
| da max - Max shoulder diameter IR | 96 mm | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Grease lubrication limit speed | 3400 tr/min | ||
| Y2 - Upper axial load coefficient | 2,50 | ||
| Y0 - Static axial load coefficient | 1,70 | ||
| Cu - Fatigue limit load | 1,8 kN | ||
| C - Dynamic load | 125 kN | ||
| Associated sleeve reference | H2315X | ||
| Brand | NTN |
| Da max - Max shoulder diameter OR | 149 mm | ||
| db - Min diameter for Sleeve | 82 mm | ||
| da min - Min shoulder diameter IR | 86 mm | ||
| Tmin - Min operating temperature | -20 °C | ||
| Nlim - Oil lubrication limit speed | 4300 tr/min | ||
| Y1 - Lower axial load coefficient | 1,60 | ||
| e - Coefficient | 0,38 | ||
| C0 - Static load | 43 kN | ||
| Radial clearance class | CN | ||

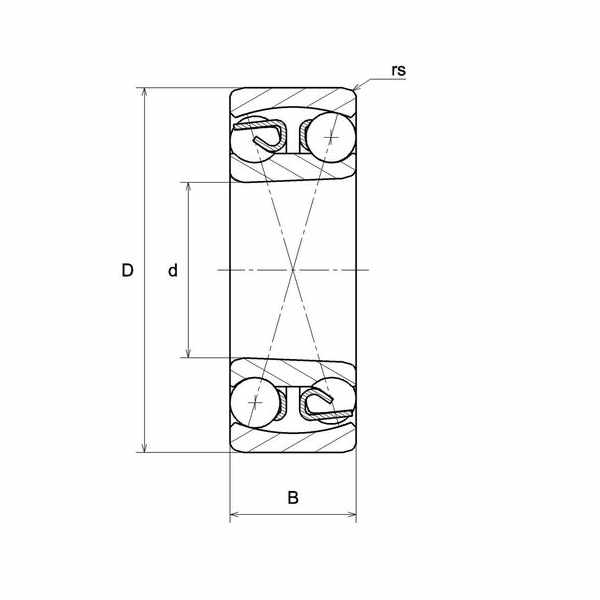

| rs - Min fillet radius | 2,1 mm |
