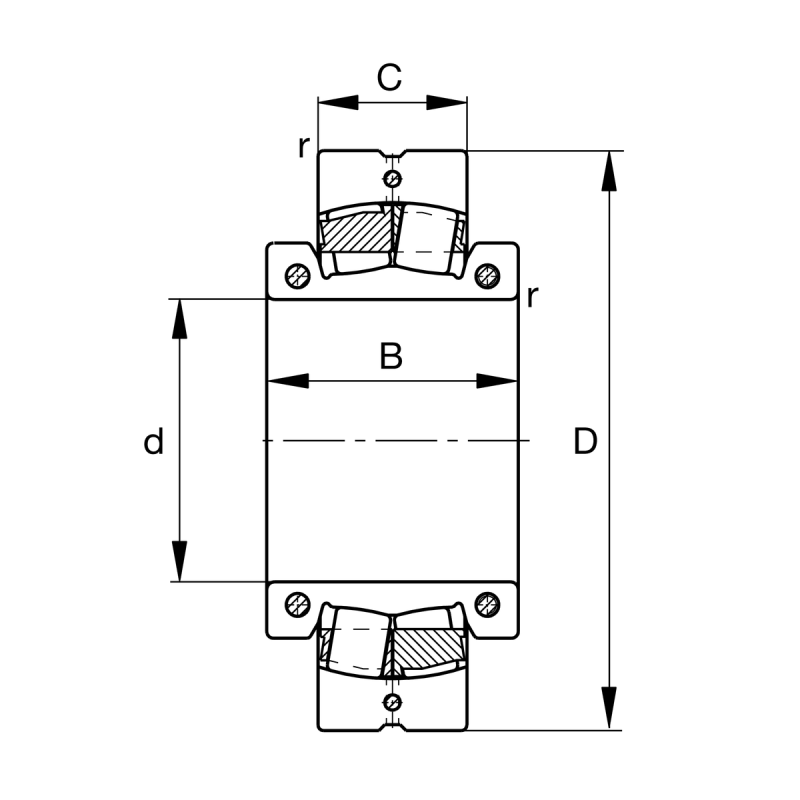

| Bore diameter | d | 265.113 | |
| Width, outer ring | B | 106 | mm |
| Basic static load rating, radial | C0r | 2,460,000 | |
| Limiting speed | nG | 620 | 1/min |
| Außen-Ø | D | 420 | mm |
| Basic dynamic load rating, radial | Cr | 1,460,000 | |
| Fatigue load limit, radial | Cur | 203,000 | |
| Maximum axial load | Fa max | 32,000 |
| Tightening torque clamping screw | Mi | 25,81 | Nm |
| Minimum chamfer dimension | rmin | 4 | mm |
| Width, inner ring | B | 170 | mm |
