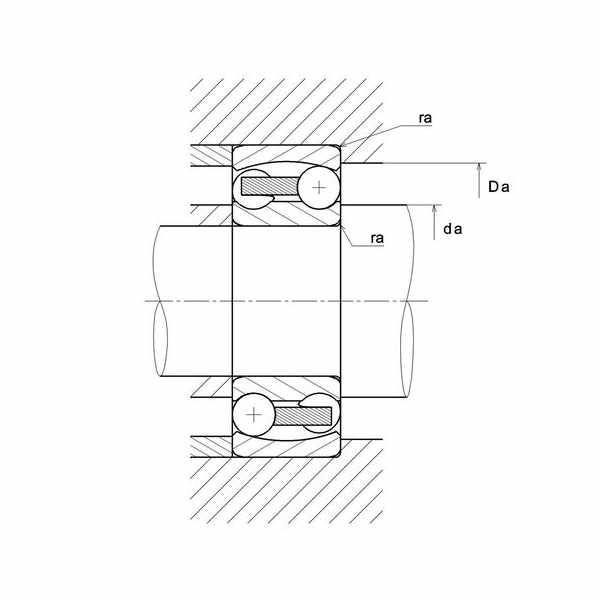

| ra max - Max shaft & housing fillet radius | 1,5 mm | ||
| da min - Min shoulder diameter IR | 48 mm | ||
| Tmin - Min operating temperature | -40 °C | ||
| Nlim - Oil lubrication limit speed | 8000 tr/min | ||
| Y1 - Lower axial load coefficient | 1,50 | ||
| e - Coefficient | 0,43 | ||
| C0 - Static load | 13,5 kN | ||
| Radial clearance class | C3 | ||
| Brand | NTN |
| Da max - Max shoulder diameter OR | 82 mm | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Grease lubrication limit speed | 6300 tr/min | ||
| Y2 - Upper axial load coefficient | 2,30 | ||
| Y0 - Static axial load coefficient | 1,50 | ||
| Cu - Fatigue limit load | 0,58 kN | ||
| C - Dynamic load | 45,5 kN | ||

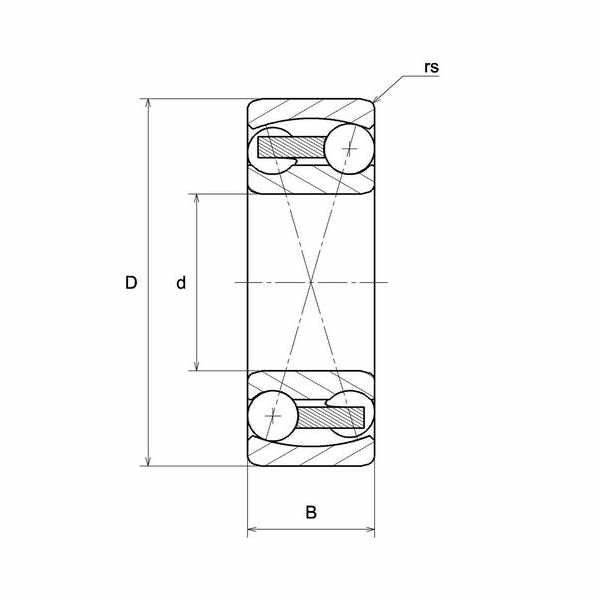

| rs - Min fillet radius | 1,5 mm |
