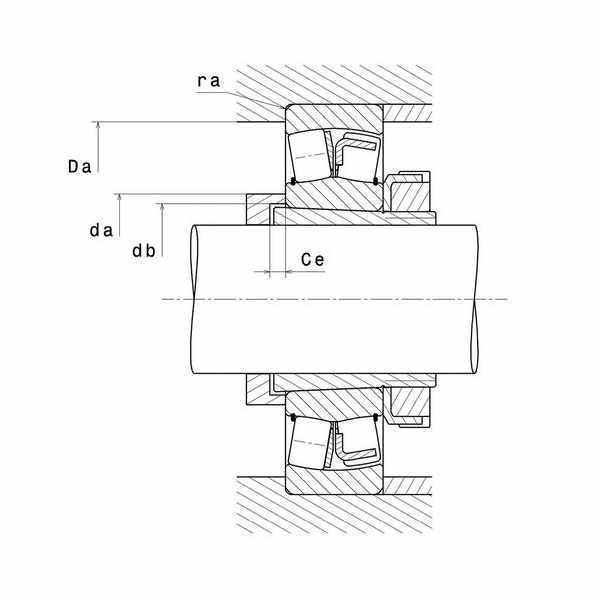

| ra max - Max shaft & housing fillet radius | 1,5 mm | ||
| Ce - Min length fro Sleeve | 5 mm | ||
| da min - Min shoulder diameter IR | 49 mm | ||
| BSF - Characteristic rolling element frequency | 5,561 Hz | ||
| BPFI - Characteristic inner ring frequency | 8,203 Hz | ||
| Tmax - Max operating temperature | 200 °C | ||
| Nlim - Mechanical Limit Speed | 9300 tr/min | ||
| Y2 - Upper axial load coefficient | 3,80 | ||
| Y0 - Static axial load coefficient | 2,50 | ||
| Cu - Fatigue limit load | 10,6 kN | ||
| C - Dynamic load | 97,7 kN | ||
| Associated sleeve reference | H308 | ||
| b - Groove width | 0 mm | ||

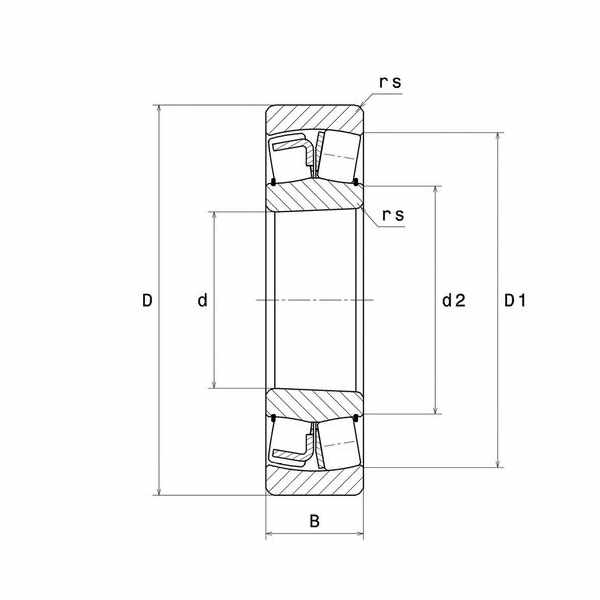

| D1 - Inner diameter outer ring | 75,4 mm |
| Da max - Max shoulder diameter OR | 81 mm | ||
| db - Min diameter for Sleeve | 44 mm | ||
| da max - Max shoulder diameter IR | 0 mm | ||
| FTF - Characteristic cage frequency | 0,414 Hz | ||
| BPFO - Characteristic outer ring frequency | 5,797 Hz | ||
| Tmin - Min operating temperature | -40 °C | ||
| Nref - Reference thermal speed | 6400 tr/min | ||
| Y1 - Lower axial load coefficient | 2,55 | ||
| e - Coefficient | 0,26 | ||
| C0 - Static load | 86,7 kN | ||
| Radial clearance class | CN | ||
| k - Hole diameter | 0 mm | ||
| rs - Min fillet radius | 1,5 mm | ||
| Brand | SNR |
