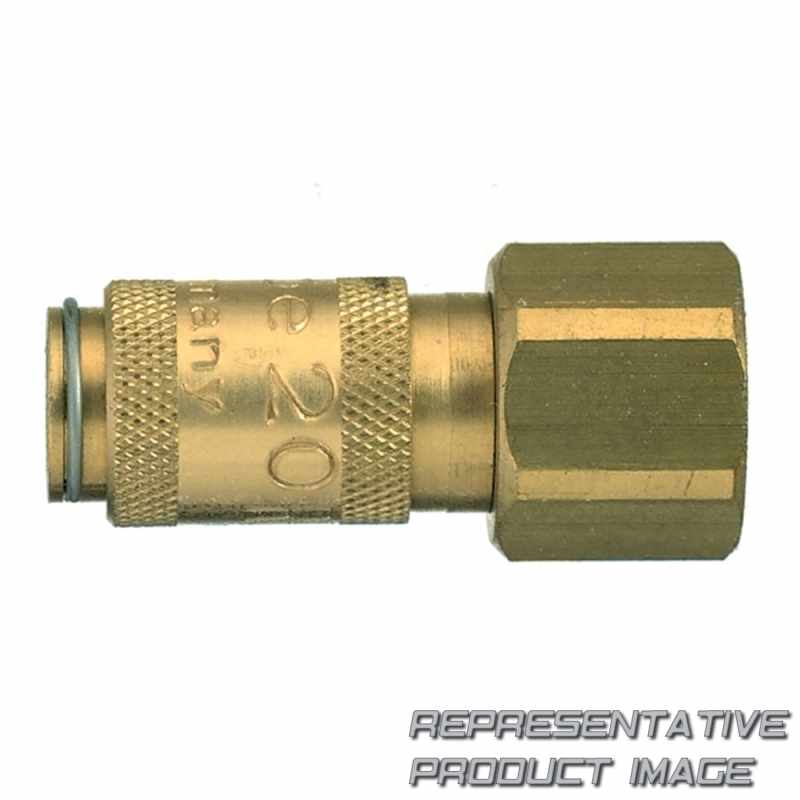

PARKER 20KBIW10MPX

24,99 € 34 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Quick coupling system with nominal diameter 2.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with an internationally used profile. Available made of brass or stainless steel.

max. Druck 35 bar
Max. Volumenstrom 130 l/min
Dichtung nbr
connection thread size (inch) 1/8
Ausführung double shut-off
Anschlussart female thread - parallel
Diameter 2,7 nom
Length 28 mm
seal material nbr
Maximale Betriebstemperatur 100 °c
flow rate 130 l/min
external hex (mm) 12
Material brass
Typ coupling
valve included yes
Außen-Ø 10 mm
Minimale Betriebstemperatur -20 °c
maximum operating pressure 35 bar
Anwendung pneumatic & fluid handling
24,99 €
Lagerbestand 34 Stk.
Teilenummer 20KBIW10MPX
Hersteller PARKER
Menge Stückpreis
1+ 24,99 €
