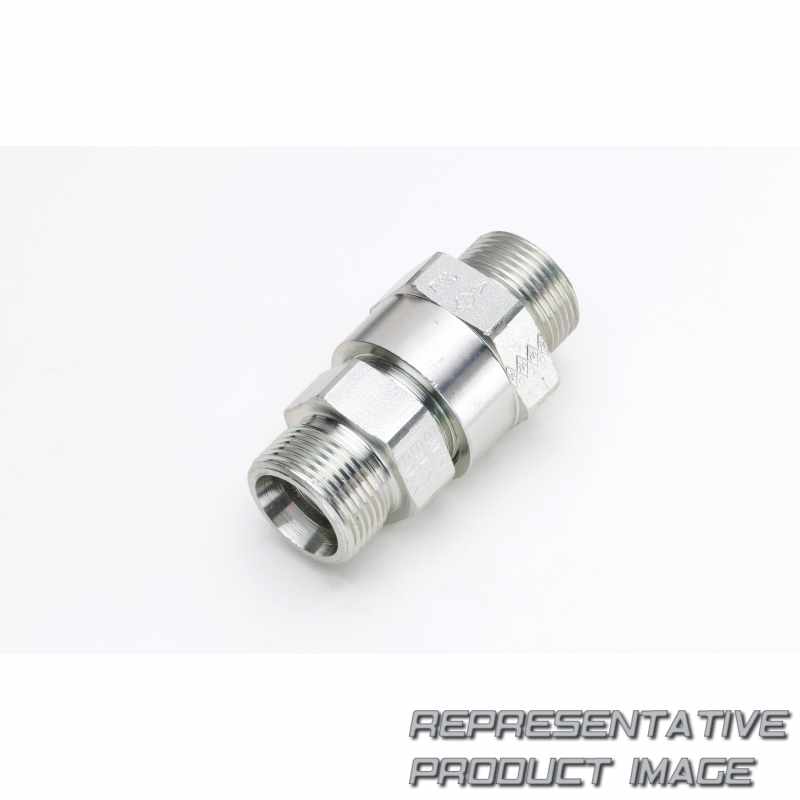

AEROQUIP 1A6FRA4

Name: 1A6FRA4 AEROQUIP
Brand: AEROQUIP
SKU: 730654-de-eur
Price: 35.4 EUR
Availability: SoldOut

35,40 €

Begrenzter Lagerbestand nur auf Anfrage erhältlich

Technische Daten

Breite	0,88mm
Innendurchmesser	0.17 inch

Gewicht	28g

fittings		con prens glob ttc ors 45 aco sext metrico
Anwendung		general purpose low, medium and high pressure hydraulic
compatible hoses		2661(–12 thru –32), fc310, fc510, fc579, fc611, fc619 (–12 thru –32), fc639/fc839b, fc693, fc735, fc849/fc849b, gh120, gh194, gh195, gh663, gh681–6, gh781, gh793, ec115, ec215, ec110, ec210, ec118
description product name		danfoss aeroquip ttc series hose end
drop dimension		0,43
end gender 1		female
end type 1		ors
feature		through-the-cover fitting sockets for one wire and two wire braid hose in all sizes except –20 have one and two rings plus a scribe mark and ttc–(size) stamped on the socket.\|global ttc fittings\|virtually all danfoss hose sockets are marked with the socket part number and dash size.
hex size 1		0.866 inch
hose dash size		-4
Innen-Ø		0.17 inch
language		english
package height		5 inch
package weight		1.15 pound
product height		0.43 inch
product material		carbon steel
Produktgewicht		0.06 pound
product width uom		inch
thread sealant		no
UPC		678146168900
