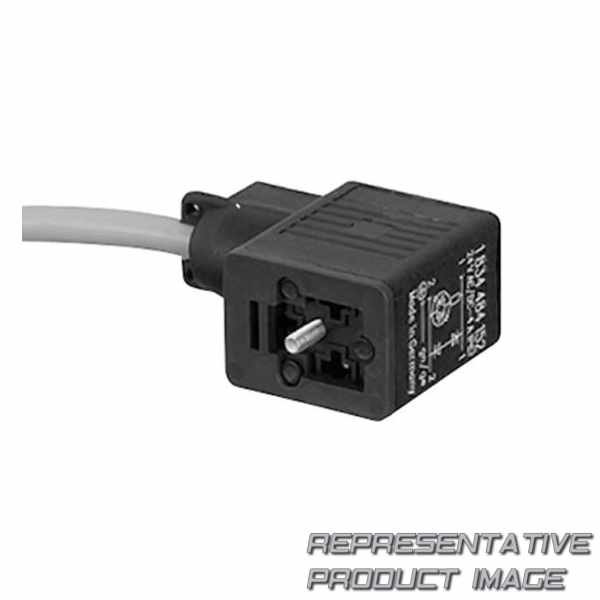

| Typ | valve plugs | ||
| operating voltage ac max. | 24 v dc | ||
| Electrical connection 1 | 2+e | ||
| cable exit | angled | ||
| Electrical connection 2 | 3-pin | ||
| number of wires | 3 | ||
| Kabellänge | 5 m | ||
| min. ambient temperature | -20 °c | ||
| max. current | 10 a | ||
| wire cross-section | 0.75 mm² | ||
| mounting screw tightening torque | 0.4 nm |
| cable | with cable | ||
| operating voltage dc, max. | 24 v ac | ||

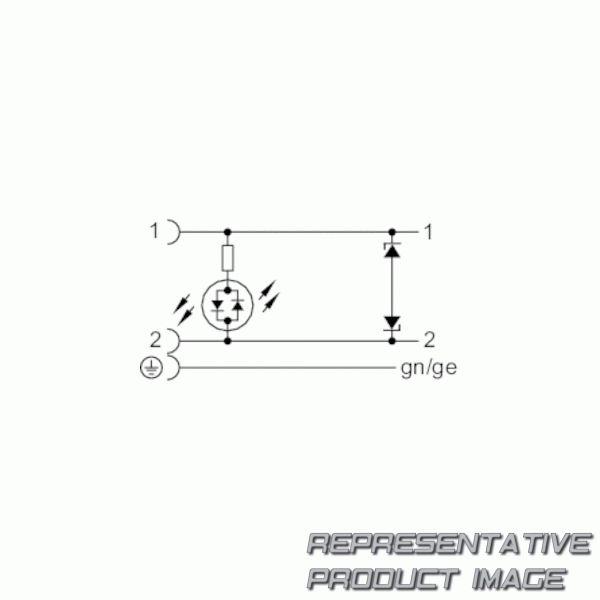

| protective circuit | z-diode | ||
| cable exit angle | 90° | ||
| contact assignment | 2+e | ||
| Shielding | unshielded | ||
| Schutzklasse | ip67 | ||
| max. ambient temperature | 80 °c | ||
| with led | yellow | ||
| cable-Ø | 5.9 mm | ||
| Gewicht | 0.31 kg |
