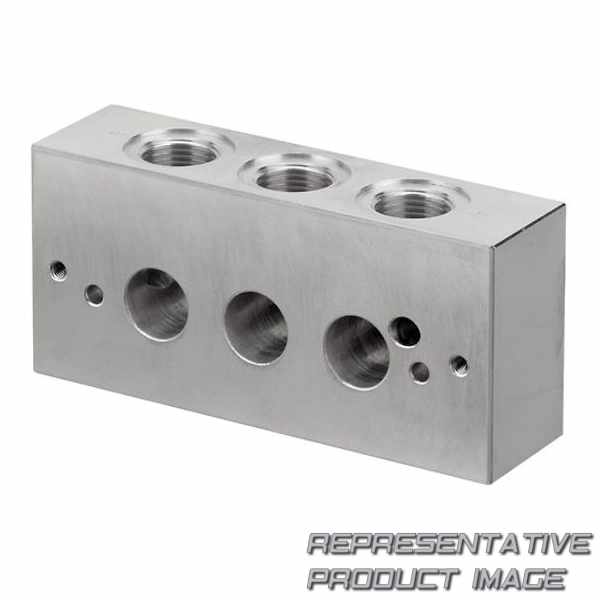

| Typ | base plate | ||
| compressed air connection 1 | g 3/8 | ||
| port 3 / 5 | g 3/8 | ||
| frame size | iso 1 | ||
| working pressure min. | 1 bar | ||
| Medium | compressed air | ||
| mounting screw | with hexagon socket | ||
| Gehäusematerial | aluminum | ||
| seal material | acrylonitrile butadiene rubber |
| direction of pneumatic port (1) | up | ||
| direction of pneumatic port (3,5) | up | ||
| exhaust (3,5) | with directional exhaust (3/5) | ||
| Standards | iso 5599-1 | ||
| working pressure max | 10 bar | ||
| Rastermaß | 30 mm | ||
| Gewicht | 0.22 kg | ||
| Material base plate | aluminum |
| Lagerbestand | 1 Stk. |
|---|---|
| Teilenummer | 1825503314 |
| Hersteller | AVENTICS |
| Menge | Stückpreis |
|---|---|
| 1+ | 125,91 € |
