| Material base plate | die-cast aluminum | ||
| Max. number of valve positions | 1 | ||
| max. medium temperature | 70 °c | ||
| max. ambient temperature | 70 °c | ||
| working pressure max | 16 bar | ||
| Standards | iso 5599-1 | ||
| compressed air connection 14 | g 1/8 | ||
| compressed air connection 12 | g 1/8 | ||
| exhaust (3,5) | with directional exhaust (3/5) | ||
| port exhaust | g 1/2 | ||
| compressed air connection output | g 1/2 | ||
| compressed air connection input | g 1/2 | ||

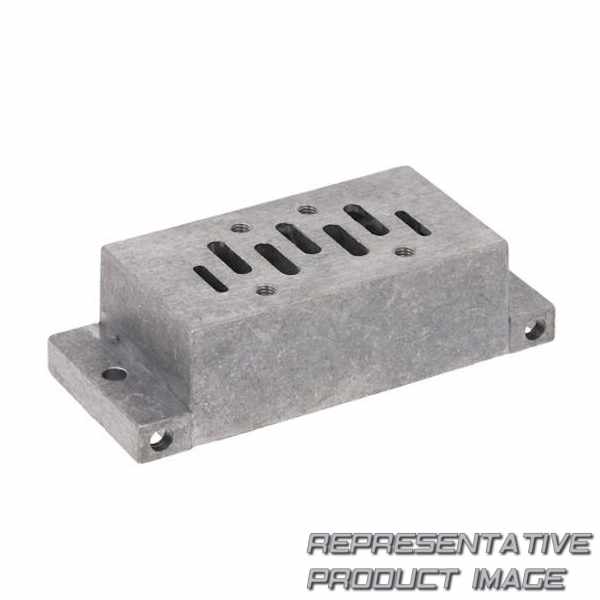

| Typ | base plate |
| Gewicht | 0.416 kg | ||
| Medium | compressed air | ||
| min. medium temperature | -25 °c | ||
| min. ambient temperature | -25 °c | ||
| working pressure min. | -0.95 bar | ||
| frame size | iso 3 | ||
| direction of pneumatic port (14) | down | ||
| direction of pneumatic port (12) | down | ||
| exhaust type | ports separated | ||
| direction of pneumatic port (3,5) | down | ||
| direction of pneumatic port (2,4) | down | ||
| direction of pneumatic port (1) | down |
