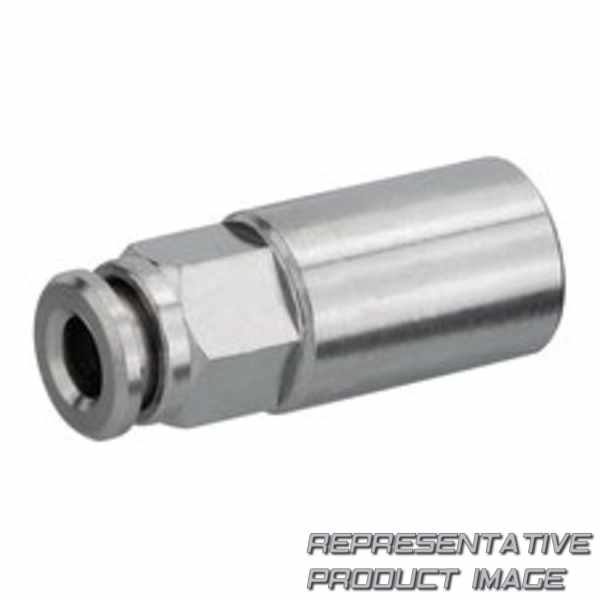

| fitting type | straight female stud fitting | ||
| Anschluss G | g 1/8 | ||
| port d | Ø 4 | ||
| working pressure min. | -0.95 bar | ||
| min. ambient temperature | -20 °c | ||
| delivery unit | 10 piece | ||
| Gehäusematerial | brass | ||
| material tooth lock washer | stainless steel | ||
| material thread | brass |
| compressed air connection type | internal thread | ||
| compressed air connection type 2 | push-in fitting | ||
| Typ | qr2-s-rai | ||
| working pressure max | 16 bar | ||
| max. ambient temperature | 80 °c | ||
| Gewicht | 0.01 kg | ||
| seal material | acrylonitrile butadiene rubber | ||
| Werkstoff Lösering | brass |
