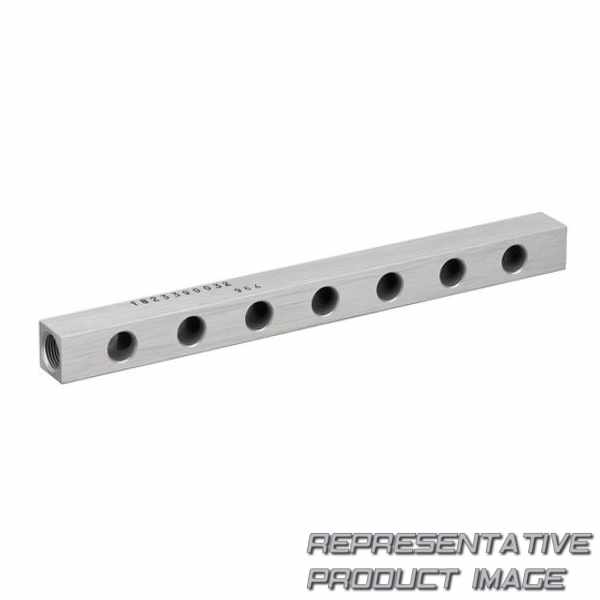

| Typ | manifold strip | ||
| compressed air connection 1 | g 1/4 | ||
| working pressure max | 10 bar | ||
| max. ambient temperature | 80 °c | ||
| max. medium temperature | 80 °c | ||
| max. particle size | 5 µm | ||
| oil content of compressed air max. | 5 mg/m³ | ||
| Rastermaß | 18 mm | ||
| Material base plate | aluminum |
| direction of pneumatic port (1) | on the side | ||
| working pressure min. | 0 bar | ||
| min. ambient temperature | 0 °c | ||
| min. medium temperature | 0 °c | ||
| Medium | compressed air | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| Max. number of valve positions | 2 | ||
| Gewicht | 0.01 kg |
