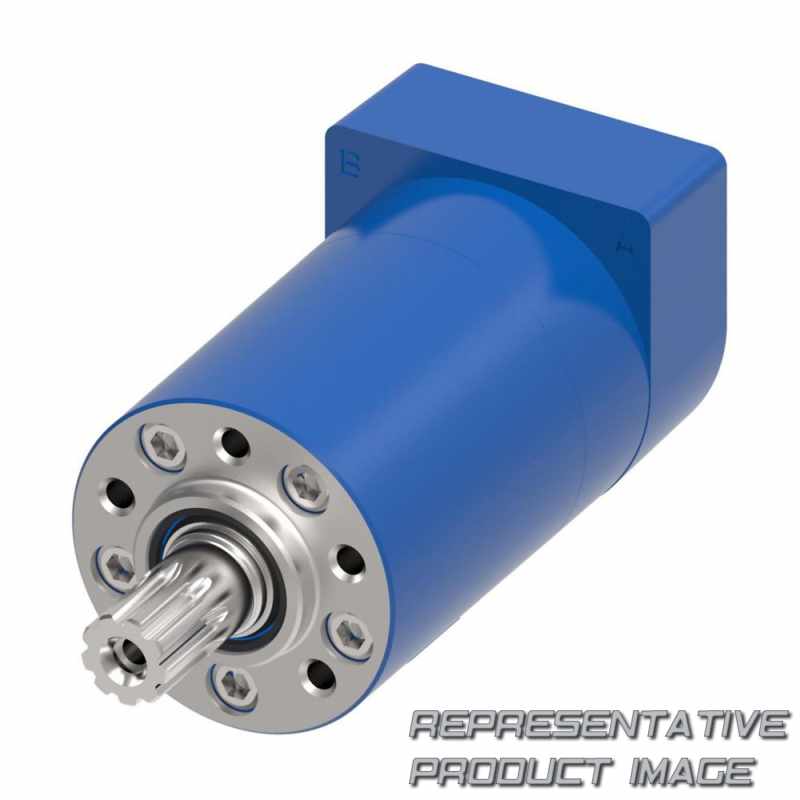

| motors | j motor | ||
| Baureihe | 0j : j2 series | ||
| Befestigungsflansch | b : 5 bolt, dia 31.47 [1.239] x 5.1 [.20] pilot m6 x 1 mounting holes on dia 45 [1.77] bolt circle | ||
| port type | h : g 3/8 bsp straight thd port, end ported | ||
| special features hardware | 00 : none | ||
| paint/special packaging | a : primer low gloss black | ||
| design code | b : two |
| Produkt | m : motor | ||
| Schluckvolumen | 30 : 49.2 cm3/r [3.00 in3/r] | ||
| output shaft | 02 : dia 16 [.630] straight with straight 5 [.197] sq key with m6 x 1 threaded hole | ||
| case drain | 2 : g 1/8 bsp straight thd port | ||
| special features assembly | 0 : none | ||
| nameplate number | 0 : none specified |
