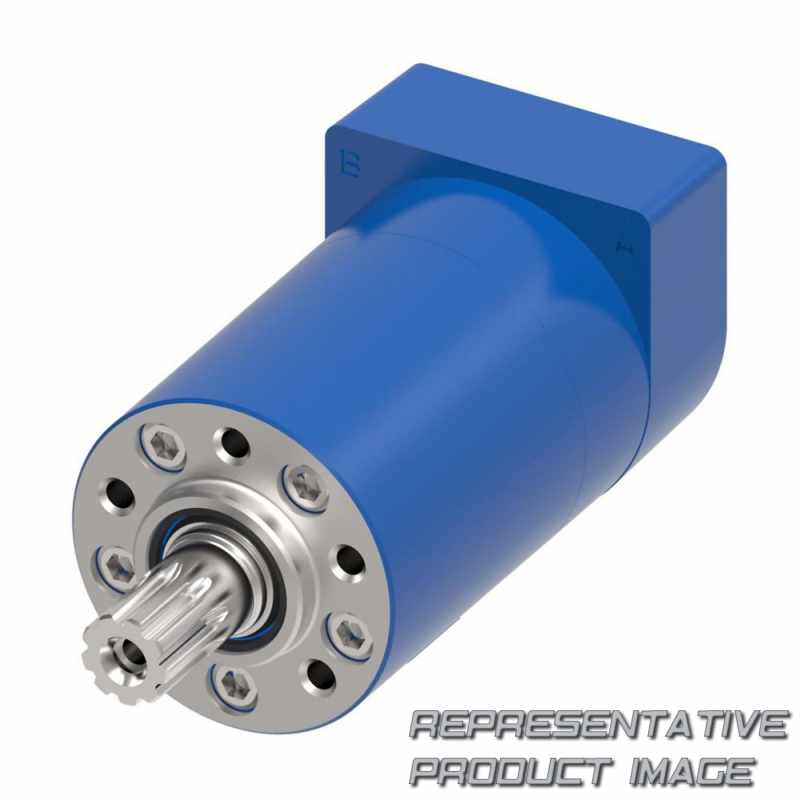

| motors | j motor | ||
| Baureihe | 0j : j2 series | ||
| Befestigungsflansch | b : 5 bolt, dia 31.47 [1.239] x 5.1 [.20] pilot m6 x 1 mounting holes on dia 45 [1.77] bolt circle | ||
| port type | c : m14 x 1.5-6h metric o-ring port, end ported | ||
| special features hardware | 00 : none | ||
| paint/special packaging | a : primer low gloss black | ||
| design code | b : two |
| Produkt | m : motor | ||
| Schluckvolumen | 19 : 31.6 cm3/r [1.93 in3/r] | ||
| output shaft | 06 : dia 16.5 [.650] b17 x 14 din 5482 spline with m6 x 1 threaded hole | ||
| case drain | 3 : m10 x 1-6h metric o-ring port | ||
| special features assembly | 0 : none | ||
| nameplate number | 0 : none specified |
