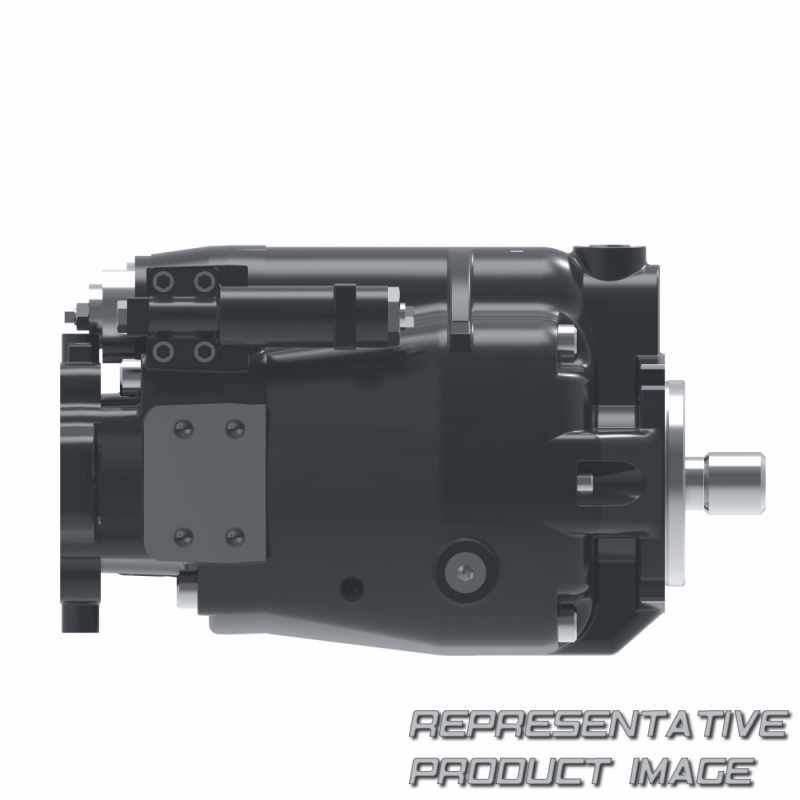

| pumps | pvm; 141cc; 70 bar; cw (rh); 1800 rpm; mtg flng sae j744-127-4 (c; 4-bolt); shaft sae d; str keyed; ports sae j518 flng; sae aux; port loc side; cntrl pc; aux mtg sae c; 2-/4-bolt 14t spline; | ||
| Schluckvolumen | 141 : 141,0 cm3/r [8.60 in3/r] (230 bar max) | ||
| input rotation | r : clockwise (right hand) | ||
| Befestigungsflansch | g : sae j744-127-4 (c, 4-bolt) (models 057, 074, 098 and 131) | ||
| port options | 02 : sae j518 flange ports, sae auxiliary ports | ||
| control | a : pressure compensator | ||
| flow comp setting / unload vlv standby | 00 : none | ||
| compensator special feature | 0 : none | ||
| paint | a : blue | ||
| design code | a : a |
| code title | pvm : vickers variable displacement open circuit piston pumps | ||
| valve plate | e : industrial (1800 r/min max) | ||
| input shaft | 13 : sae j744-44-1, sae d, straight keyed (model 131) | ||
| main port location | s : side | ||
| pump special features | aa : adjustable max displacement stop (contains single shaft seal) | ||
| pressure comp setting | 07 : 66-74 bar [957-1073 lbf/in2] | ||
| other compensation / unload vlv reset | 00 : none | ||
| auxiliary mounting | e : sae c, 2-/4-bolt 14t spline (models 057, 074, 098 and 131) | ||
| customer identification | 0 : none |
