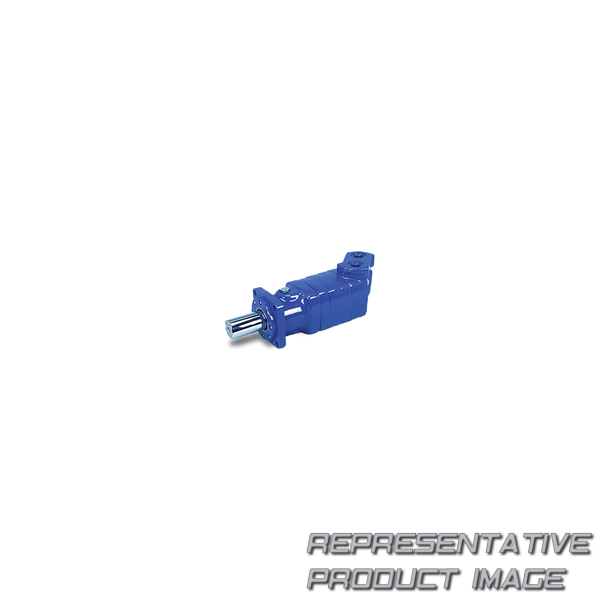

| motors | 10000 series; standard mount motor | ||
| Baureihe | 10 : 10,000 series | ||
| Mounting type | aa : standard, 4 bolt; 127.0 [5.00] pilot dia. 16.76 [.660] dia. holes on 161.92 [6.375] dia. bolt circle. | ||
| Anschlüsse | aa : 1.3125-12 un-2b sae o-ring staggered ports | ||
| low pressure relief | 0 : none | ||
| geroler option | 0 : standard | ||
| accessories | 00 : none | ||
| special feature (assembly) | 00 : none | ||
| customer identification | 00 : none |
| Produkt | m : motor | ||
| Schluckvolumen | 406 : 665.3 cm3/r [40.60 in3/r] | ||
| output shaft | 02 : 57.15 [2.250] dia. .125;1 tapered shaft per sae j501 with 1.500-18 unef-2a threaded shaft end and slotted hex nut, 14.288 [.5625] square x 50.8 [2.00] straight key | ||
| case flow options | 01 : .5625-18 unf-2b case drain sae o-ring port | ||
| pressure / flow option | 00 : none | ||
| seal option | 0 : standard | ||
| special feature (hardware) | 00 : none | ||
| paint / packaging | 00 : none | ||
| design code | c : third |
