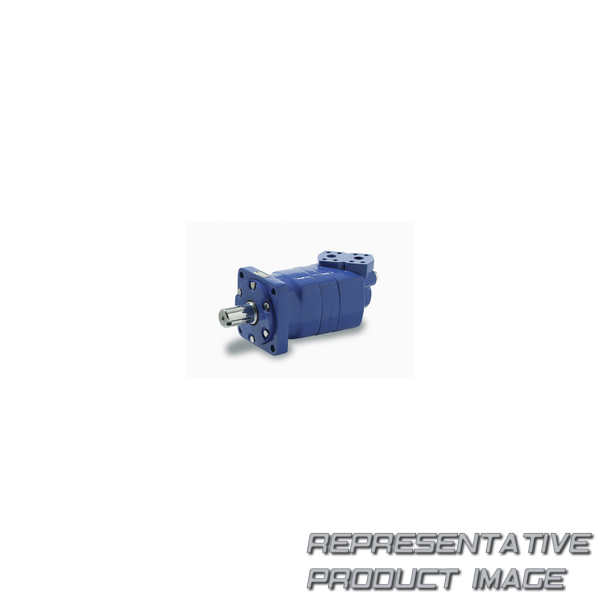

| motors | 6000 series; standard mount motor | ||
| Baureihe | 06 : 6000 series | ||
| Mounting type | ab : standard; (sae cc); 4 bolt; 127.0 [5.00] pilot dia. 14.35 [.565] dia. holes on 162.0 [6.38] dia. bolt circle | ||
| Anschlüsse | aa : 1.3125-12 un-2b sae o-ring ports - staggered ports | ||
| low pressure relief | 0 : none | ||
| geroler option | 0 : standard | ||
| accessories | 00 : none | ||
| special features (assembly) | 00 : none | ||
| customer identification | 00 : none |
| Produkt | m : motor | ||
| Schluckvolumen | 300 : 491.4 cm3/r [29.99 in3/r] | ||
| output shaft | 03 : 38.10 [1.500] dia. flat root side fit; 17 tooth; 12/24 dp 30 deg. involute spline with .375-16 unc-2b thread in end 40.4 [1.59] minimum full spline length | ||
| case flow options | 02 : .4375-20 unf-2b sae o-ring port with check valve | ||
| pressure/flow option | 00 : none | ||
| seal option | 0 : standard | ||
| special features (hardware) | 00 : none | ||
| paint/packaging | aa : primer low gloss black | ||
| design code | f : sixth |
